DSD Information System
Home
>>
Toyota
>>
2021
>>
Highlander LE, 4WD
>>
Repair and Diagnosis
>>
Restraints
>>
Seat Belts
>>
Seat Belt Warning System - Diagnostics & Symptom Tests
>>
Seat Belt Warning System
>>
Seat Belt Status Display Malfunction [10/2022 - 11/2023]
>>

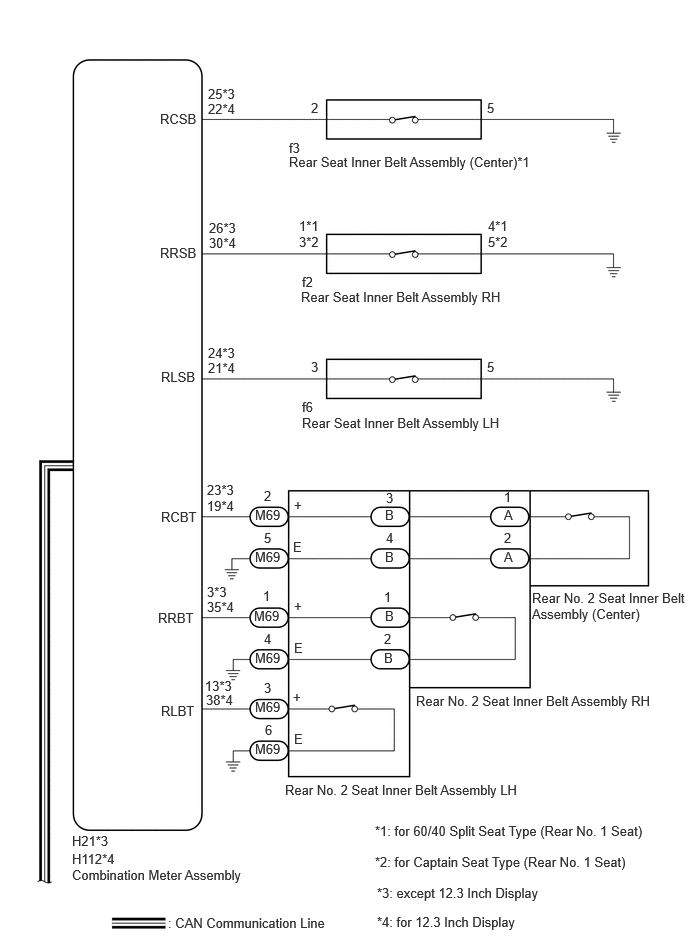

Wiring Diagram
Seat Belt Status Display Malfunction [10/2022 - 11/2023]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
