Parts Location [12/2019 - 11/2023]: Illustration

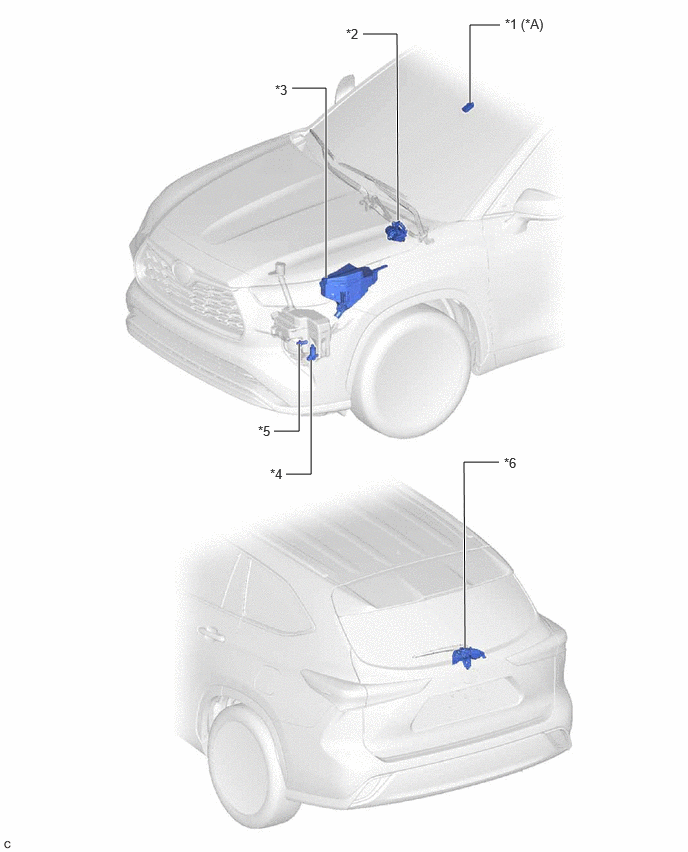

| *A | w/ Auto Wiper System | - | - |
| *1 | RAIN SENSOR | *2 | WINDSHIELD WIPER MOTOR ASSEMBLY |
| *3 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 ENGINE ROOM JUNCTION BLOCK - WIPER FUSE - WIPER RELAY |
*4 | WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY |
| *5 | LEVEL WARNING SWITCH ASSEMBLY | *6 | REAR WIPER MOTOR ASSEMBLY |

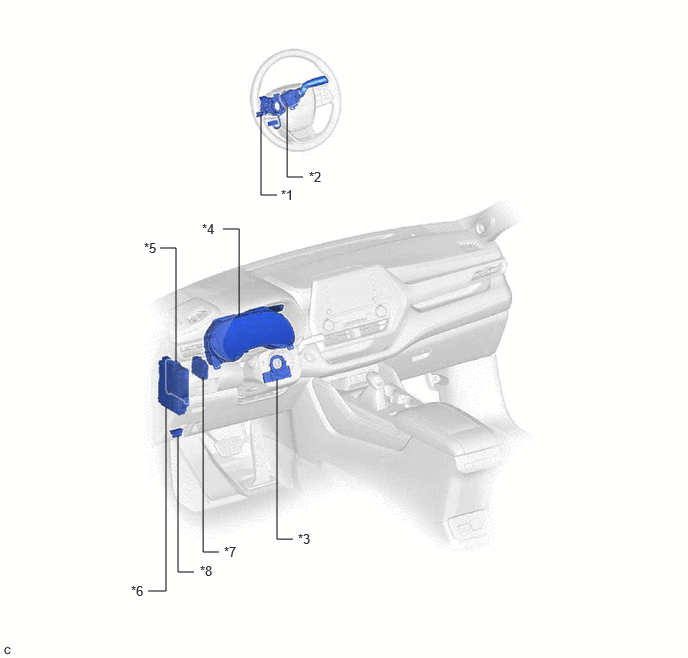

| *1 | STEERING WHEEL SWITCH HOUSING | *2 | WINDSHIELD WIPER SWITCH ASSEMBLY |
| *3 | STEERING SENSOR | *4 | COMBINATION METER ASSEMBLY |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - WASHER FUSE - WIPER RR FUSE - ECU-IG1 NO. 4 FUSE (w/ Auto Wiper System) - IG1 NO. 1 RELAY (w/ Auto Wiper System) - IG1 NO. 2 RELAY |
| *7 | WINDSHIELD WIPER RELAY ASSEMBLY | *8 | DLC3 |
