System Diagram [12/2019 - 11/2023]

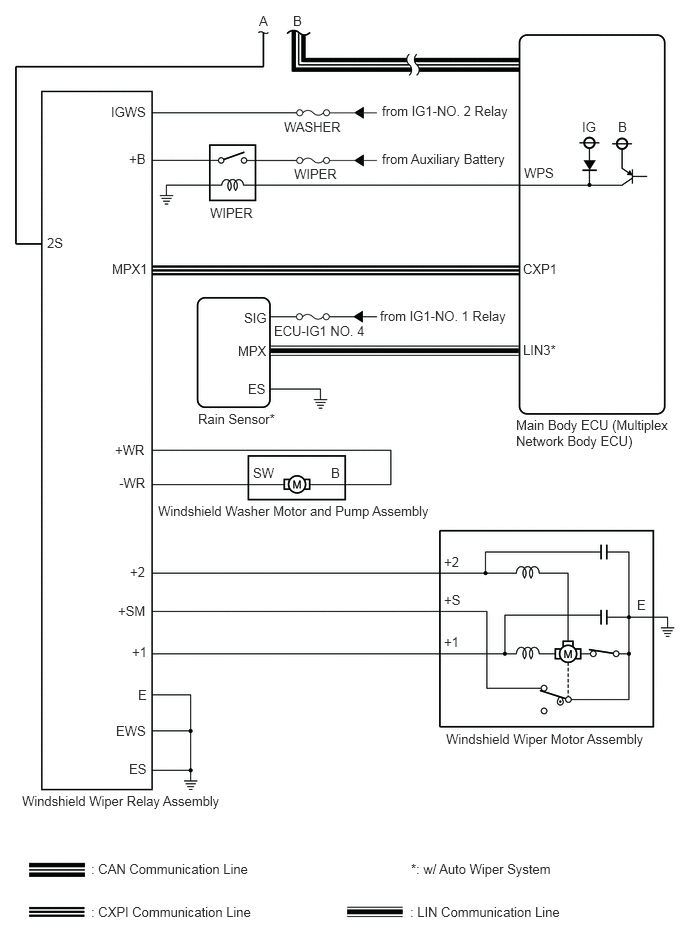

  1. FRONT WIPER AND WASHER SYSTEM
    GTY913211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY902175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

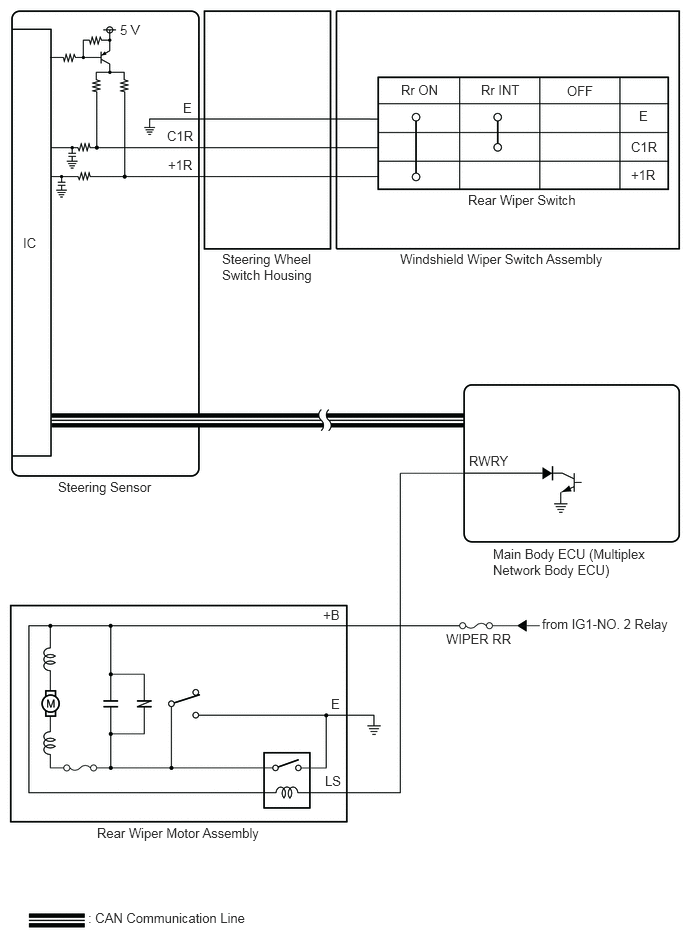

  2. REAR WIPER SYSTEM
    GTY940114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. WASHER FLUID LEVEL WARNING SYSTEM
    GTY882597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
