System Diagram [11/2023 - ]

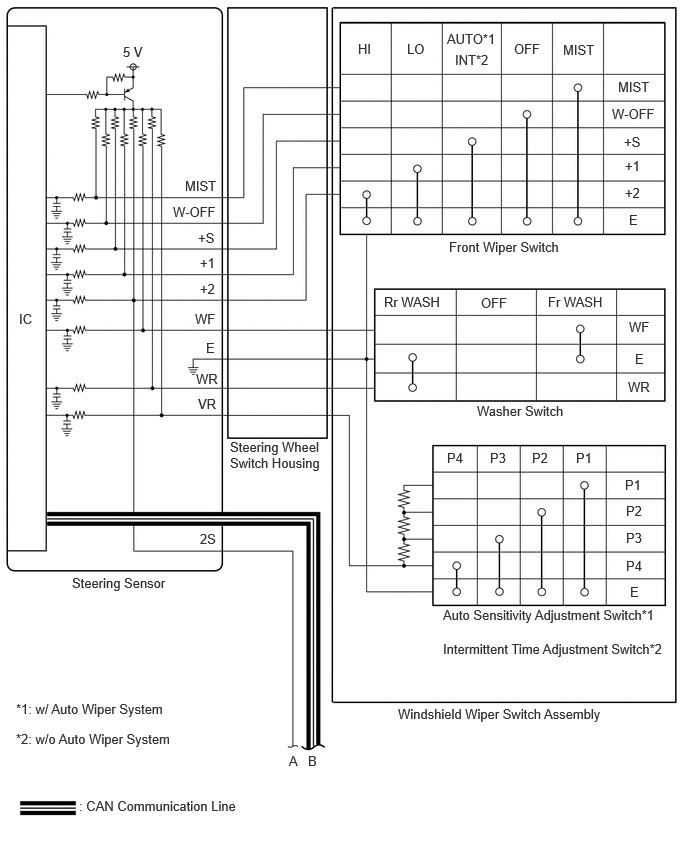

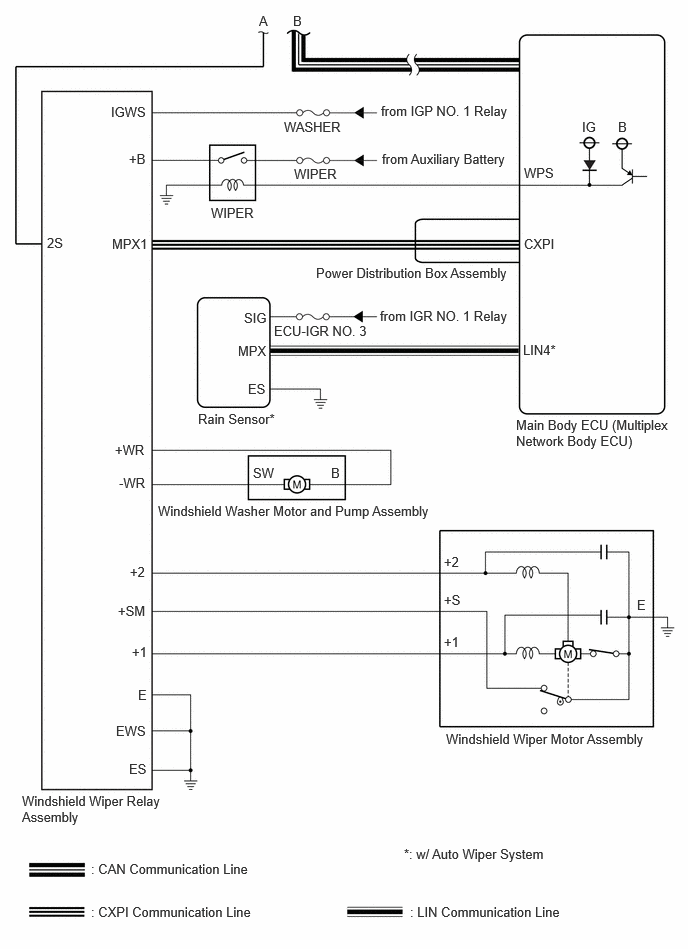

  1. FRONT WIPER AND WASHER SYSTEM
    GTY913211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY1179439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

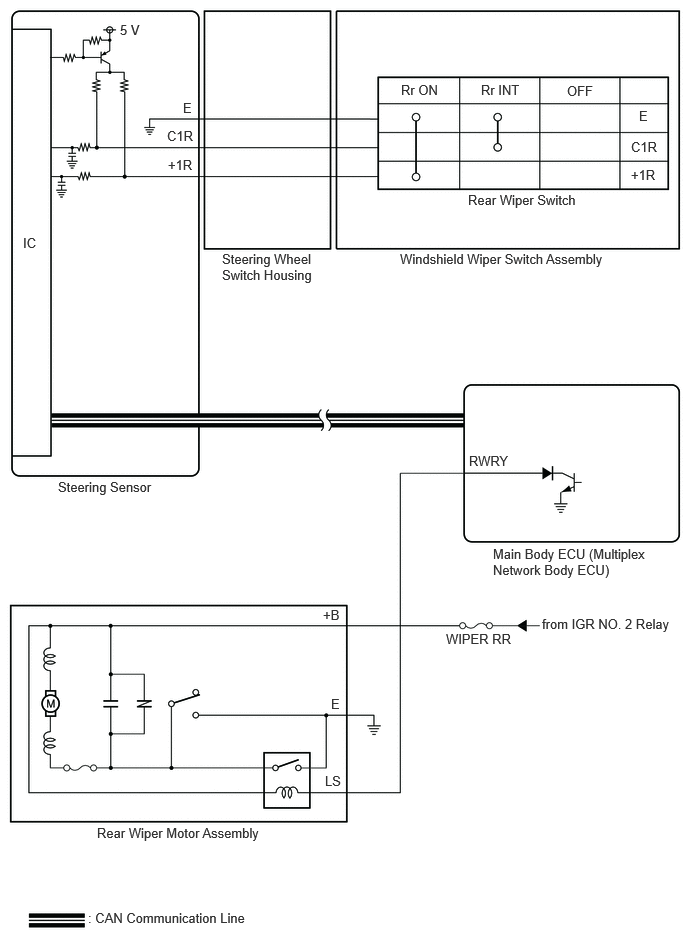

  2. REAR WIPER SYSTEM
    GTY1180090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. WASHER FLUID LEVEL WARNING SYSTEM
    GTY882597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
