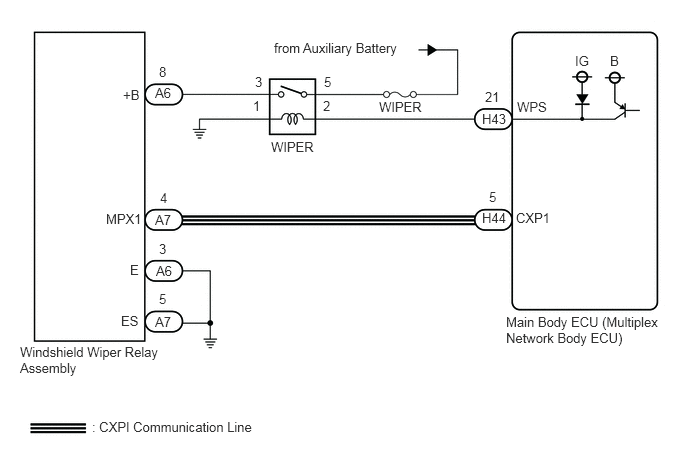

DTC B2357: Lost Communication with Wiper Module [12/2019 - 11/2023]: Wiring Diagram

GTY862347

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
