DSD Information System
Home
>>
Toyota
>>
2021
>>
Highlander LE, 4WD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Wiper/Washer Systems
>>
Wiper System / Washer System - Diagnostic Codes & Circuit Tests
>>
Wiper And Washer System
>>
DTC B2357-87: Wiper Module Missing Message [11/2023 - ]
>>

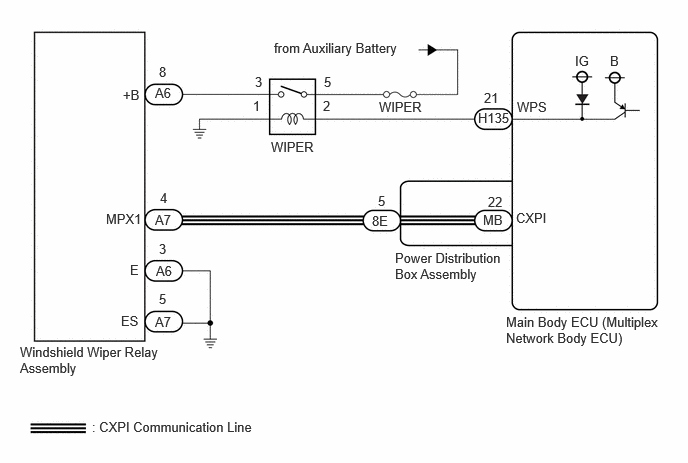

Wiring Diagram
DTC B2357-87: Wiper Module Missing Message [11/2023 - ]: Wiring Diagram
