Wiper And Washer System
>>
Rear Wiper Motor Circuit [11/2023 - ]
>>
Wiring Diagram

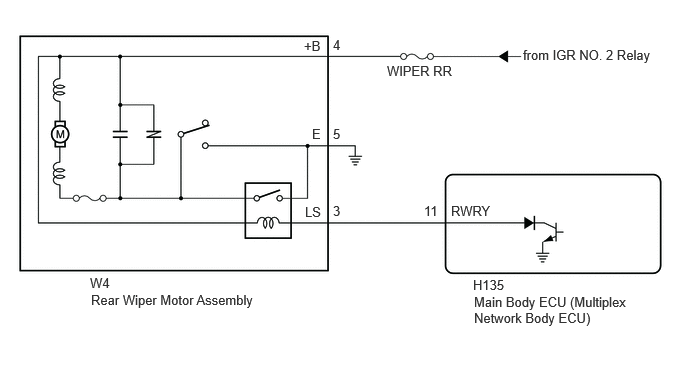

Rear Wiper Motor Circuit [11/2023 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
