Wiper System / Washer System - Diagnostic Codes & Circuit Tests
>>
Wiper And Washer System
>>
Wiper and Washer Switch Circuit [12/2019 - ]
>>
Wiring Diagram

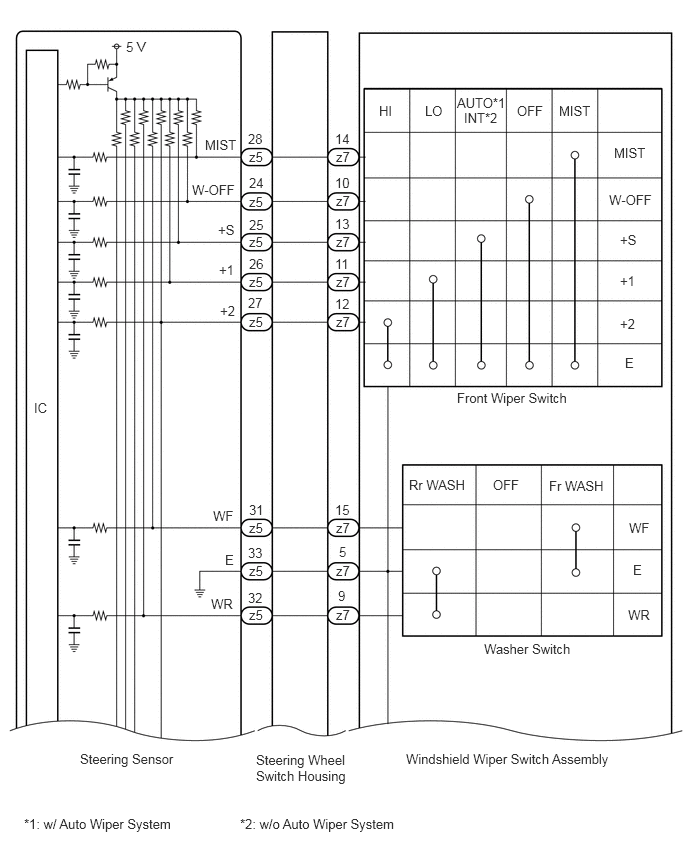

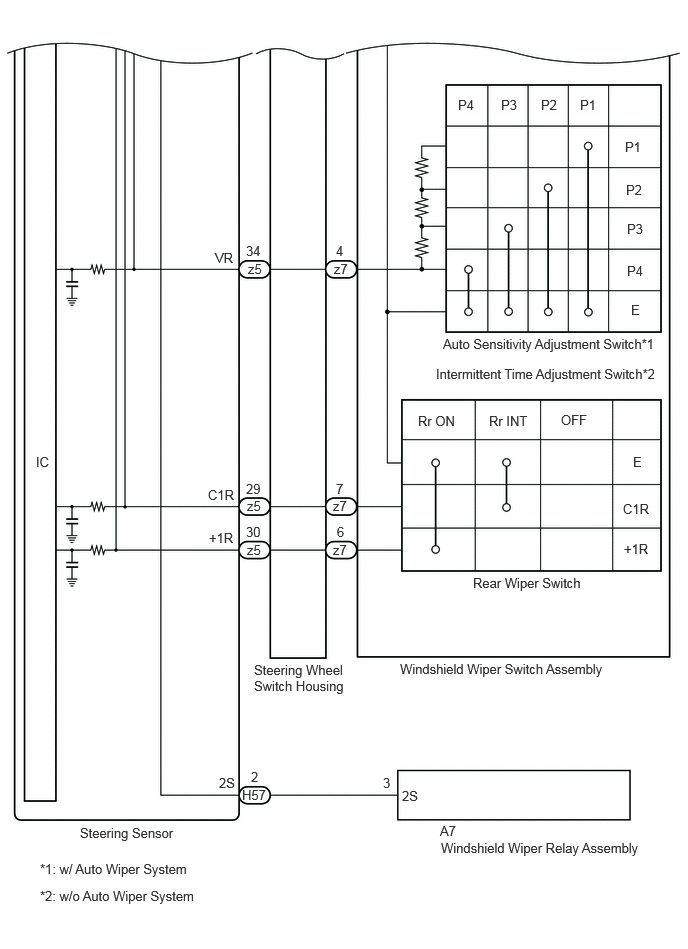

Wiper and Washer Switch Circuit [12/2019 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
