Wiper And Washer System
>>
Washer Motor Circuit [12/2019 - 11/2023]
>>

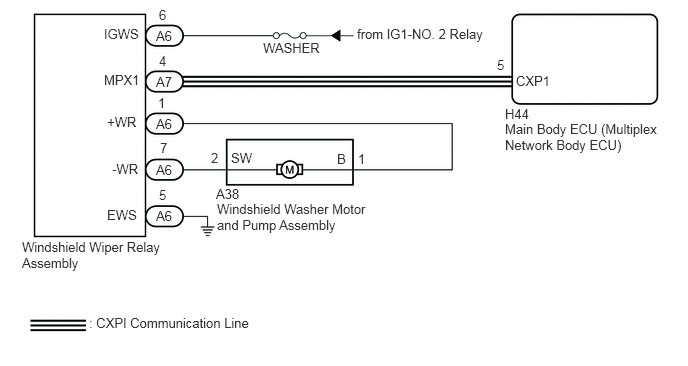

Wiring Diagram
Washer Motor Circuit [12/2019 - 11/2023]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
