Parts Location [12/2019 - 10/2022]: Illustration

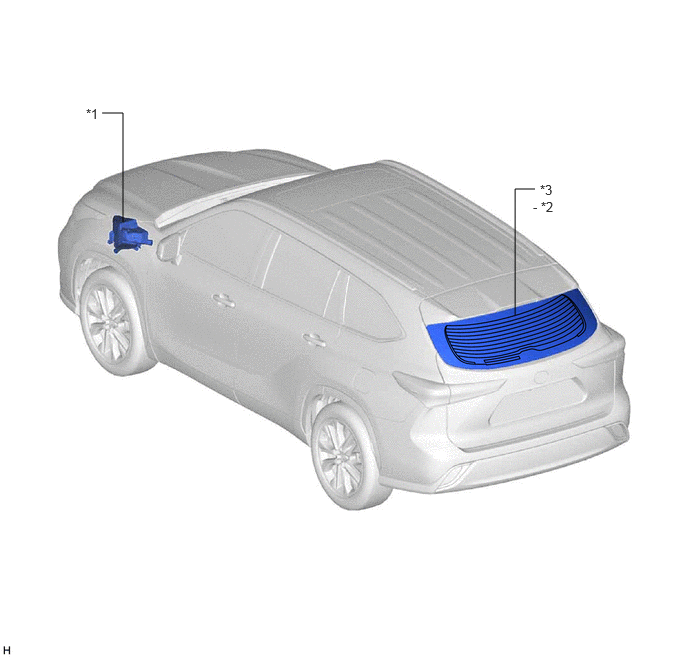

GTY938618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- DEF RELAY
- DEF FUSE		 *2 REAR WINDOW DEFOGGER WIRE
*3 BACK DOOR GLASS - -

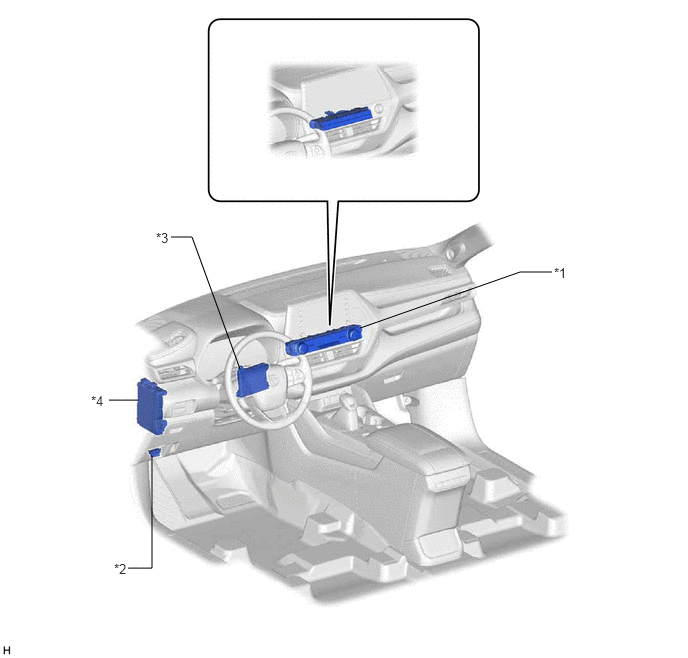

GTY900684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A For 8 Inch Display *B For 12.3 Inch Display
*1 REAR WINDOW DEFOGGER SWITCH (AIR CONDITIONING CONTROL ASSEMBLY) *2 DLC3
*3 AIR CONDITIONING AMPLIFIER ASSEMBLY *4 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-IG1 NO. 3 FUSE
