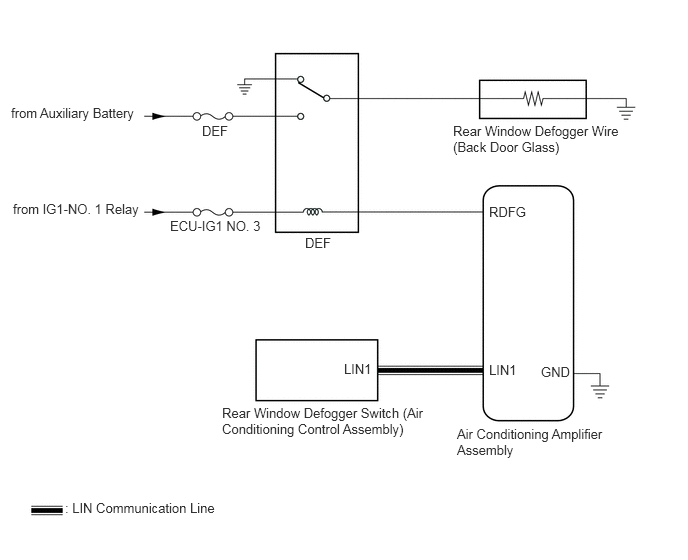

System Diagram [12/2019 - 11/2023]

GTY926663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Transmitter Receiver Signal Communication Method
Rear Window Defogger Switch (Air Conditioning Control Assembly) Air Conditioning Amplifier Assembly Rear Window Defogger Switch Signal LIN
