Power Steering System - Diagnostic Codes & Circuit Tests
>>
Power Steering System
>>
Drive Mode Select Switch Circuit [12/2019 - 10/2022]
>>
Wiring Diagram

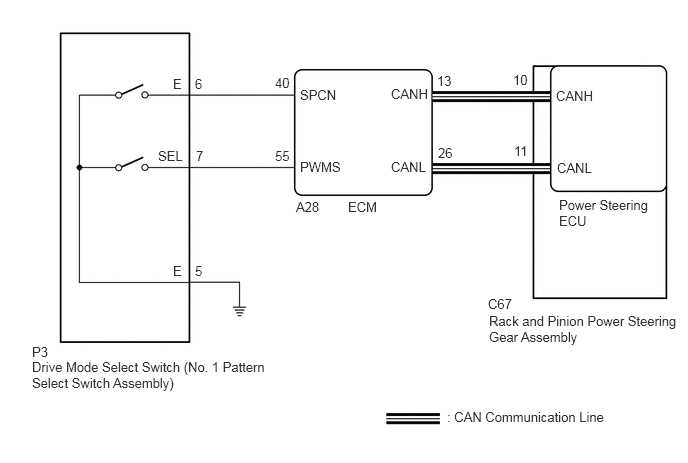

Drive Mode Select Switch Circuit [12/2019 - 10/2022]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
