Power Steering System - Diagnostic Codes & Circuit Tests
>>
Power Steering System
>>
Drive Mode Select Switch Circuit [10/2022 - ]
>>
Wiring Diagram

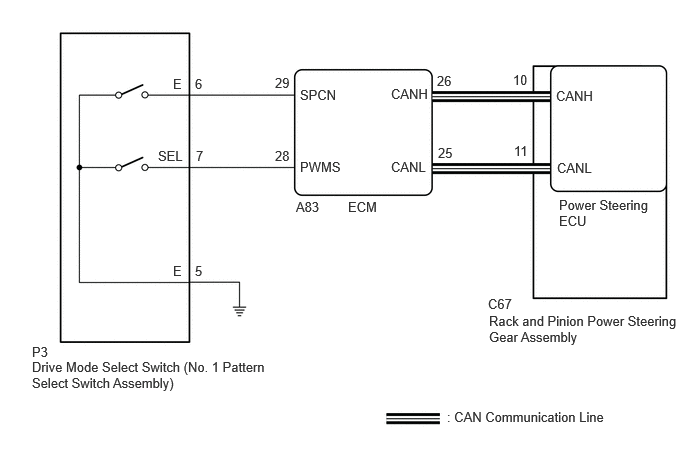

Drive Mode Select Switch Circuit [10/2022 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
