Stop And Start System - Circuit Tests & Symptom Tests (3 Of 3)
>>
Stop And Start System
>>
STA Signal Circuit [11/2023 - ]
>>
Wiring Diagram
STA Signal Circuit [11/2023 - ]: Wiring Diagram

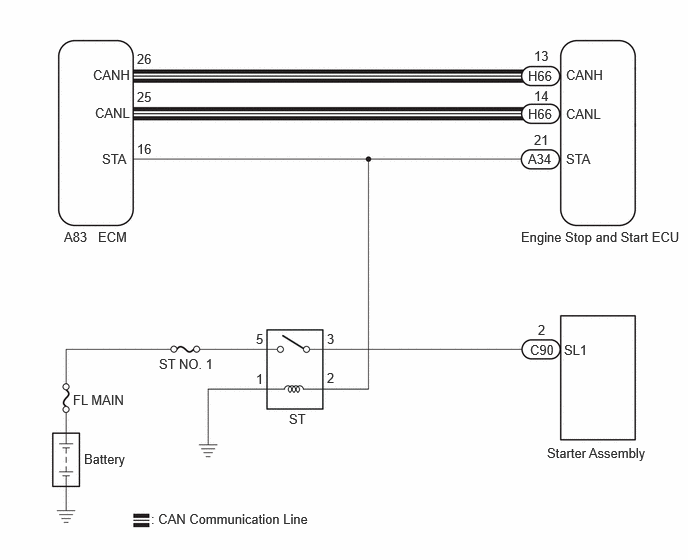

Fig 1: STA Signal Circuit [11/2023 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
