DSD Information System

Home >> Toyota >> 2021 >> Highlander LE, 4WD >> Repair and Diagnosis >> Engine Mechanical >> Starter >> Stop And Start System - Diagnostic Codes (1 Of 3) >> Stop And Start System >> DTC P0335-62: Crankshaft Position Sensor "A" Signal Compare Failure [10/2022 - 11/2023] >> Wiring Diagram

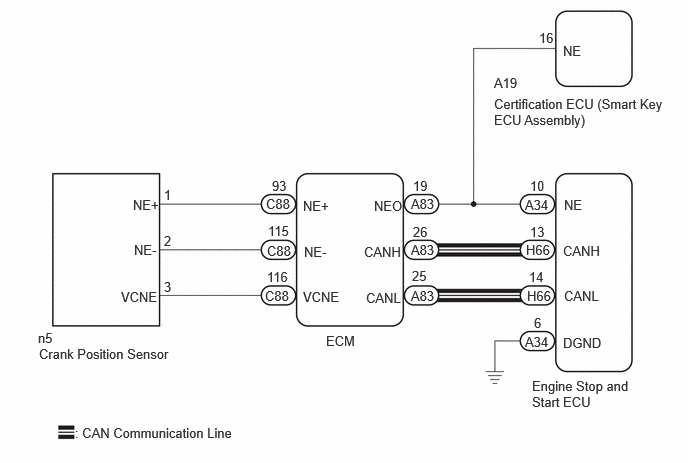

DTC P0335-62: Crankshaft Position Sensor "A" Signal Compare Failure [10/2022 - 11/2023]: Wiring Diagram

GTY1106408

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
