DSD Information System
Home
>>
Toyota
>>
2021
>>
Highlander LE, 4WD
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Starter
>>
Stop And Start System - Diagnostic Codes (1 Of 3)
>>
Stop And Start System
>>
DTC P0615-11: Starter Relay Circuit Short to Ground [10/2022 - 11/2023]
>>

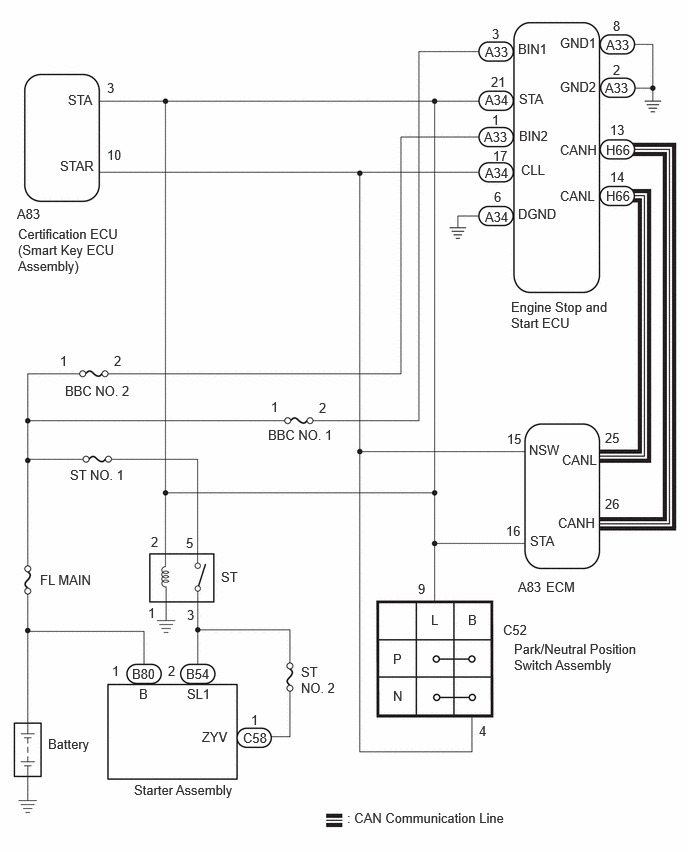

Wiring Diagram
DTC P0615-11: Starter Relay Circuit Short to Ground [10/2022 - 11/2023]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
