Stop And Start System - Diagnostic Codes (1 Of 3)
>>
Stop And Start System
>>
DTC P0615-19: Starter Relay Circuit Current Above Threshold [12/2019 - 10/2022]
>>

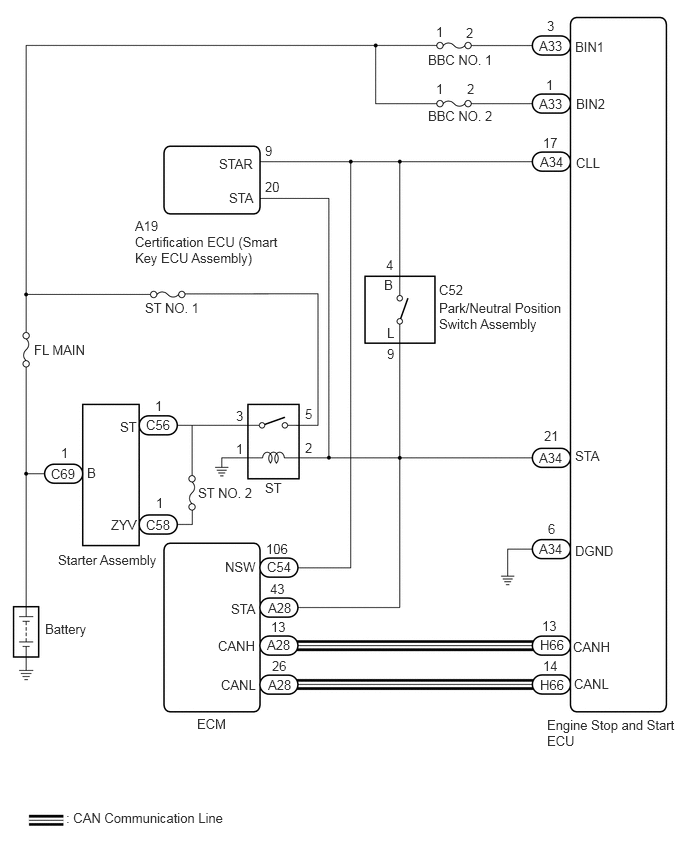

Wiring Diagram
DTC P0615-19: Starter Relay Circuit Current Above Threshold [12/2019 - 10/2022]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
