CAN COMMUNICATION SYSTEM (for Gasoline Model)
>>
Main Body ECU Communication Stop Mode [11/2023 - ]
>>
Wiring Diagram

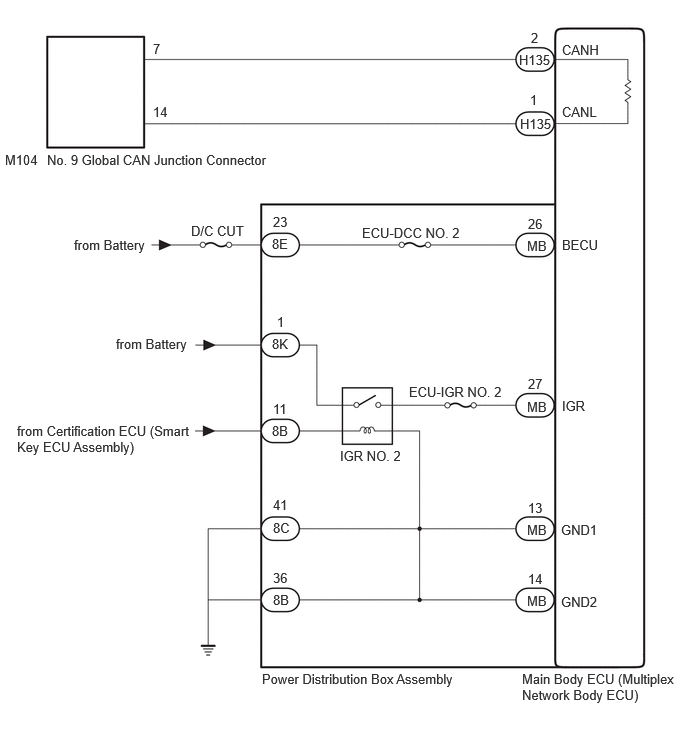

Main Body ECU Communication Stop Mode [11/2023 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
