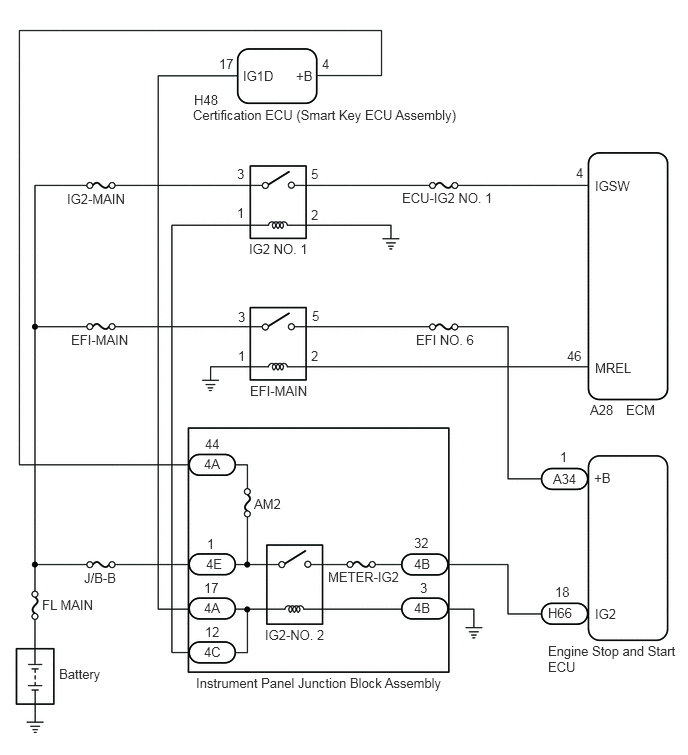

DTC P2530-14: Ignition Switch Circuit Short to Ground or Open [12/2019 - 10/2022]: Wiring Diagram

GTY894611

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
