CAN COMMUNICATION SYSTEM (for Gasoline Model)
>>
Combination Meter ECU Communication Stop Mode [12/2019 - 10/2022]
>>
Wiring Diagram

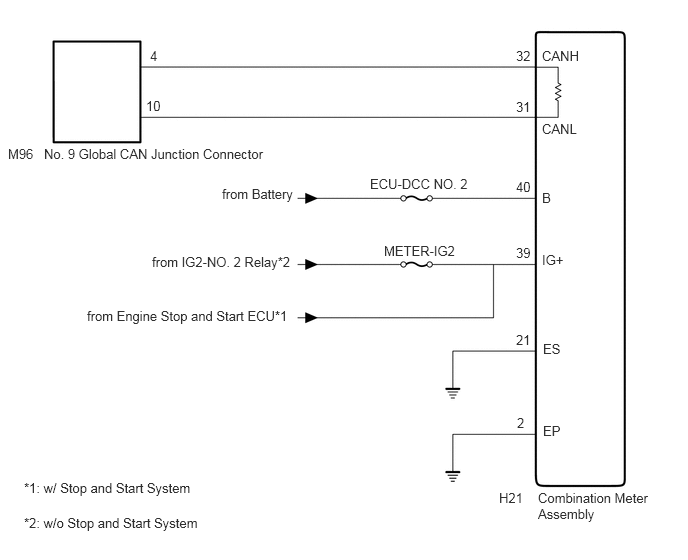

Combination Meter ECU Communication Stop Mode [12/2019 - 10/2022]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
