DTC P323A-19: Backup Boost Converter "A" Circuit Current Above Threshold [12/2019 - 10/2022]: Wiring Diagram

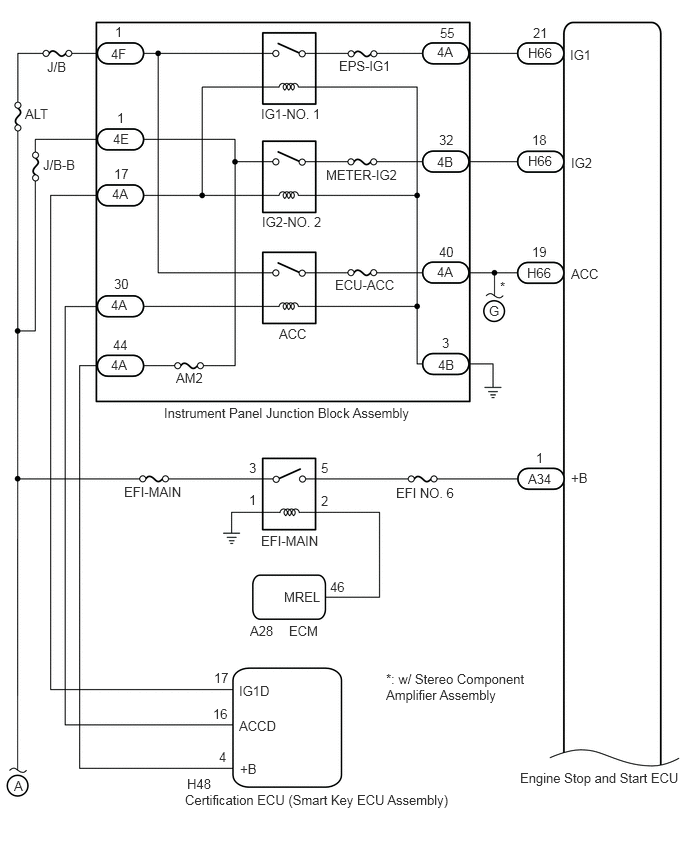

GTY875057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

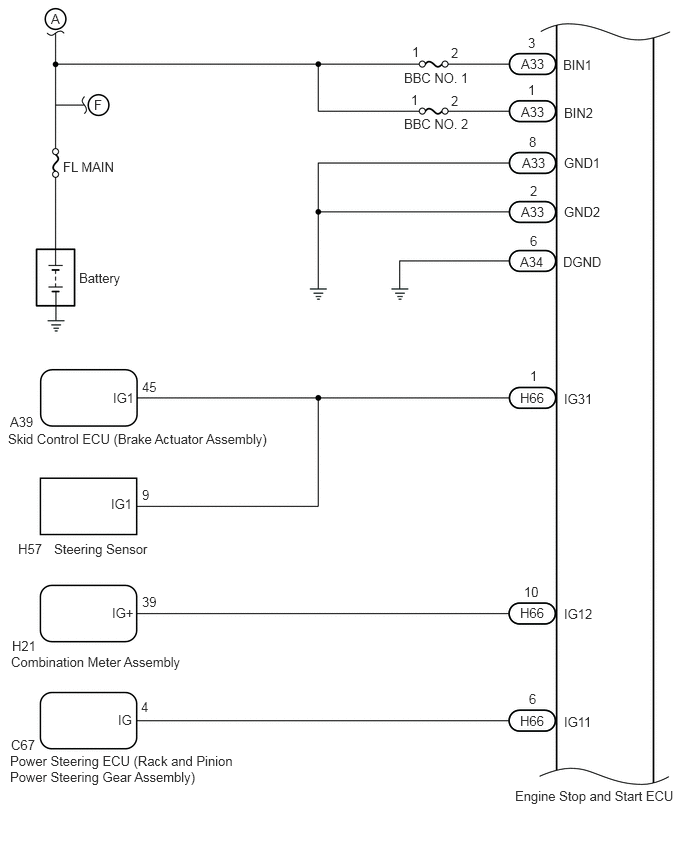

GTY890745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

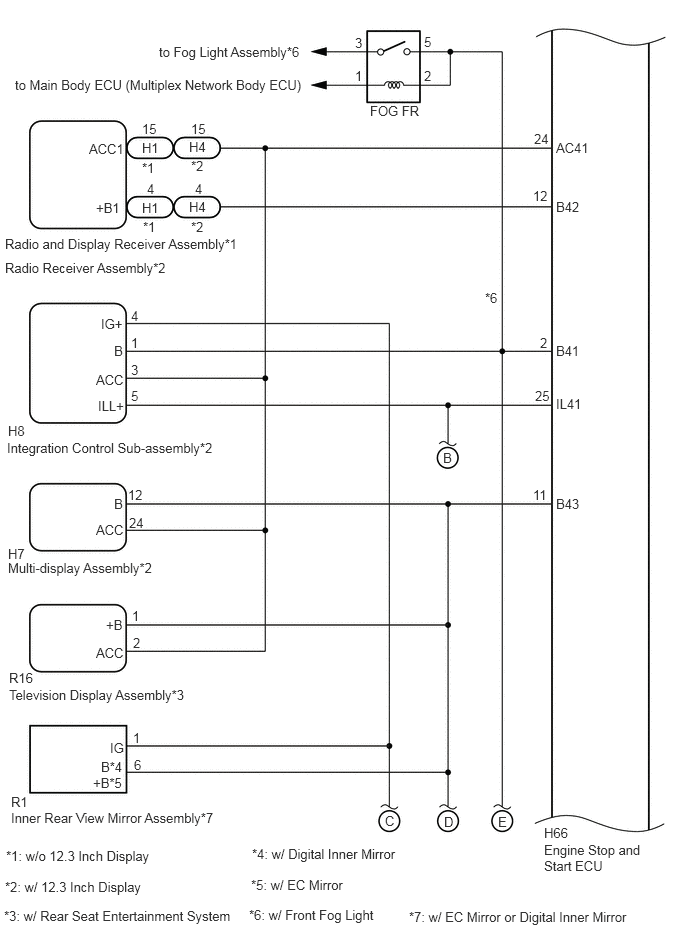

GTY936442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

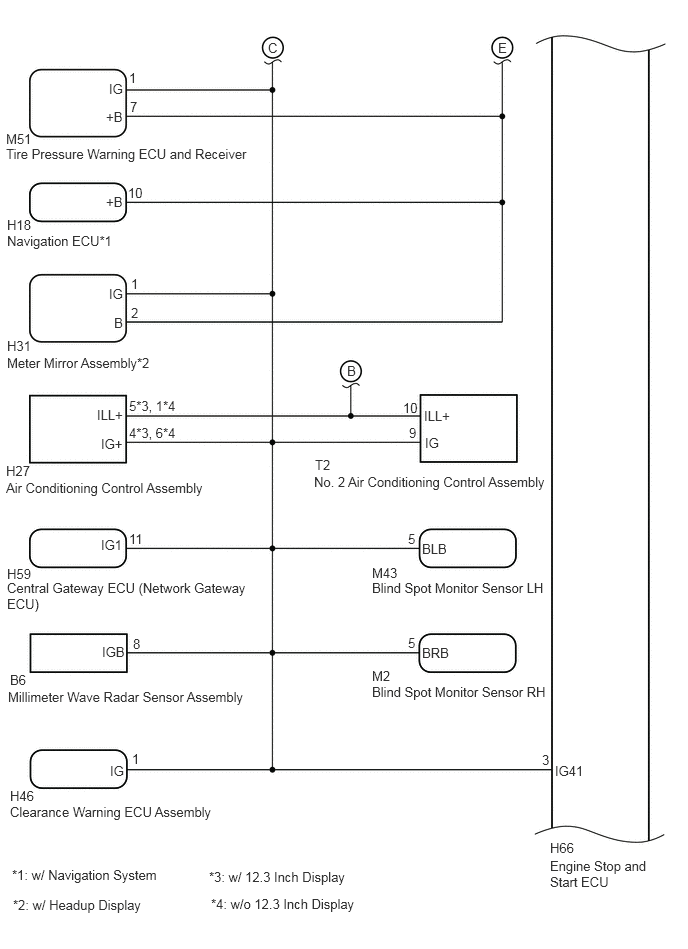

GTY940174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

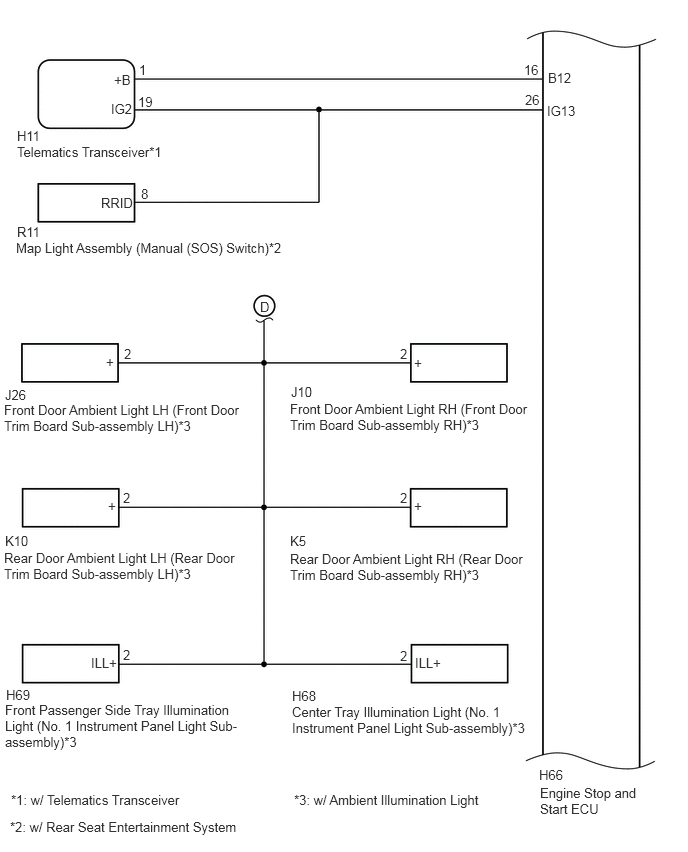

GTY868258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

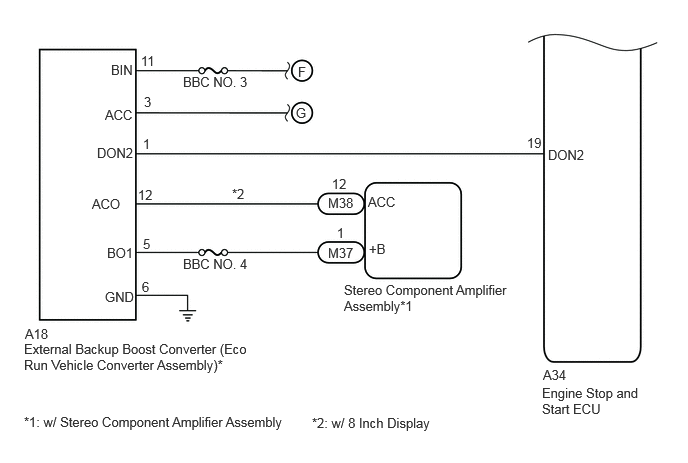

GTY995955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
