Combination Meter ECU Communication Stop Mode [11/2023 - ]: Wiring Diagram

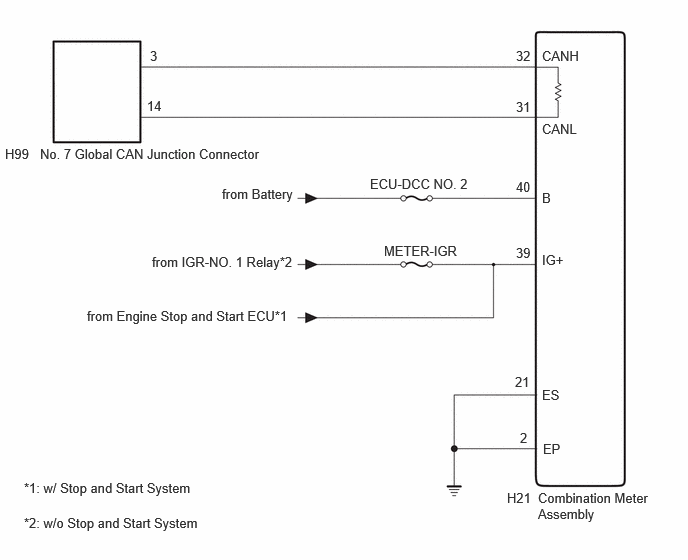

except 12.3 Inch Display:

GTY1178668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

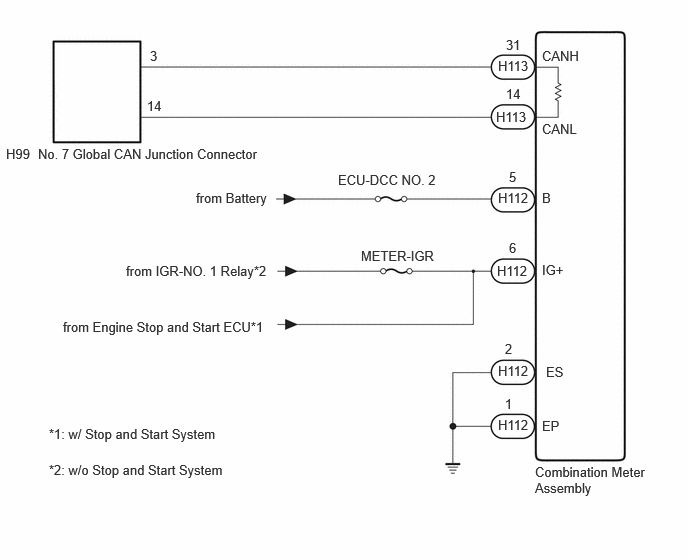

for 12.3 Inch Display:

GTY1177748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
