SMART KEY SYSTEM (for Start Function, Gasoline Model)
>>
Engine does not Start [10/2022 - 11/2023]
>>

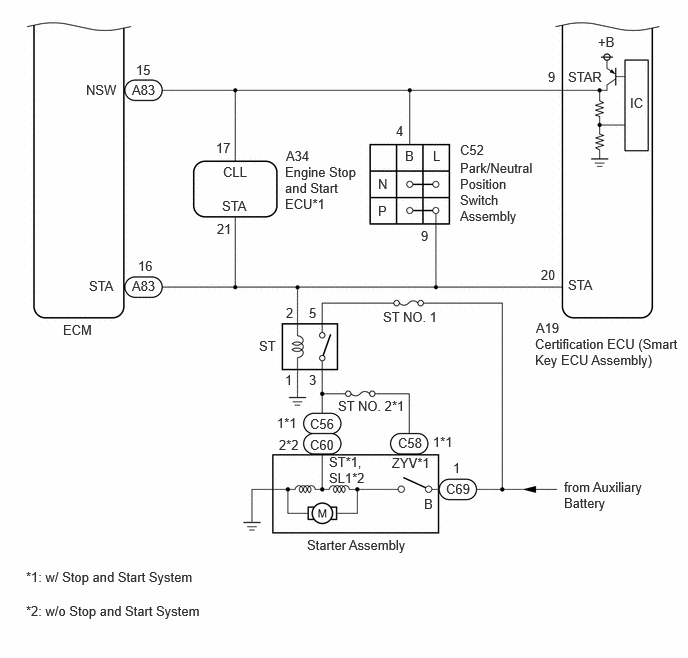

Wiring Diagram
Engine does not Start [10/2022 - 11/2023]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
