Components [12/2019 - 10/2022]

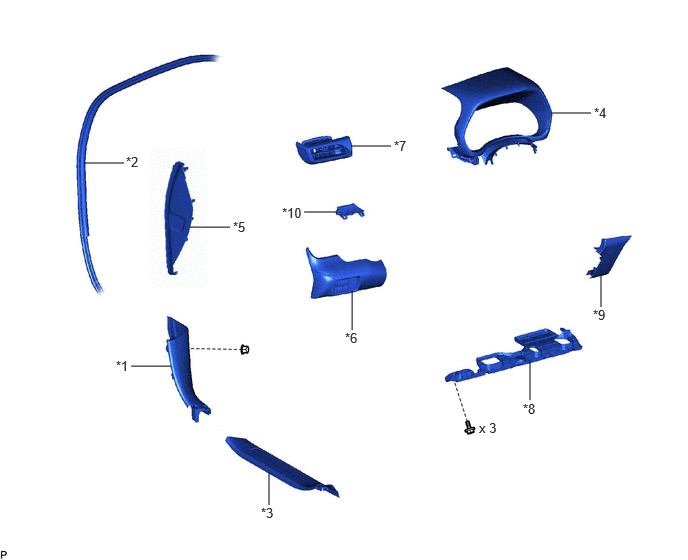

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | COWL SIDE TRIM SUB-ASSEMBLY LH | *2 | FRONT DOOR OPENING TRIM WEATHERSTRIP LH |
| *3 | FRONT DOOR SCUFF PLATE LH | *4 | INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY |
| *5 | INSTRUMENT PANEL FINISH END PANEL LH | *6 | INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY |
| *7 | NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY | *8 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
| *9 | NO. 1 SWITCH HOLE BASE | *10 | TRIP SWITCH |

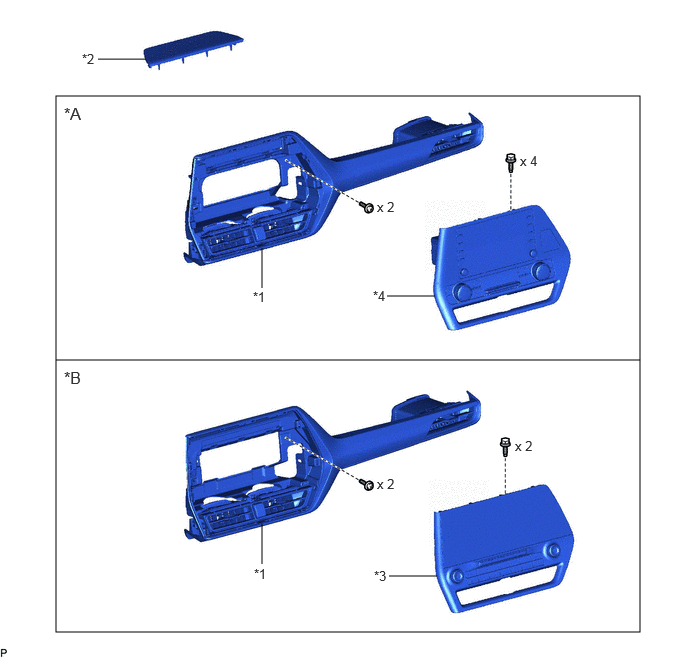

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | for 8 Inch Display | *B | for 12.3 Inch Display |
| *1 | CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY | *2 | CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY |
| *3 | MULTI-DISPLAY WITH AIR CONDITIONING CONTROL | *4 | RADIO AND DISPLAY ASSEMBLY WITH AIR CONDITIONING CONTROL |

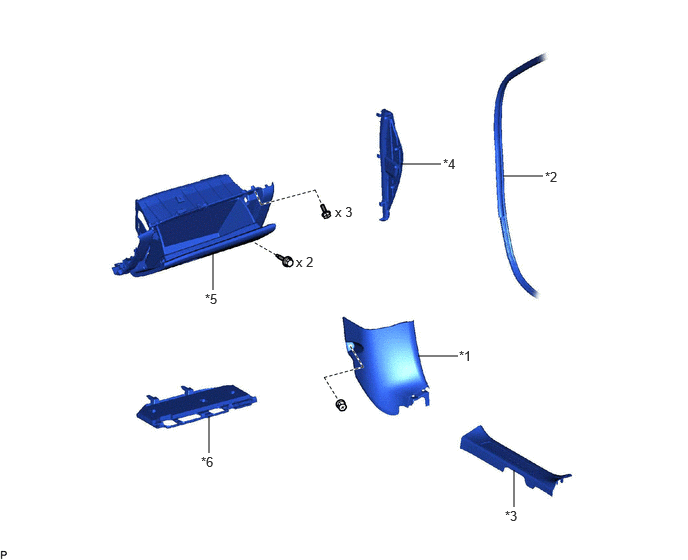

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | COWL SIDE TRIM SUB-ASSEMBLY RH | *2 | FRONT DOOR OPENING TRIM WEATHERSTRIP RH |
| *3 | FRONT DOOR SCUFF PLATE RH | *4 | INSTRUMENT PANEL FINISH END PANEL RH |
| *5 | LOWER INSTRUMENT PANEL SUB-ASSEMBLY | *6 | NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |

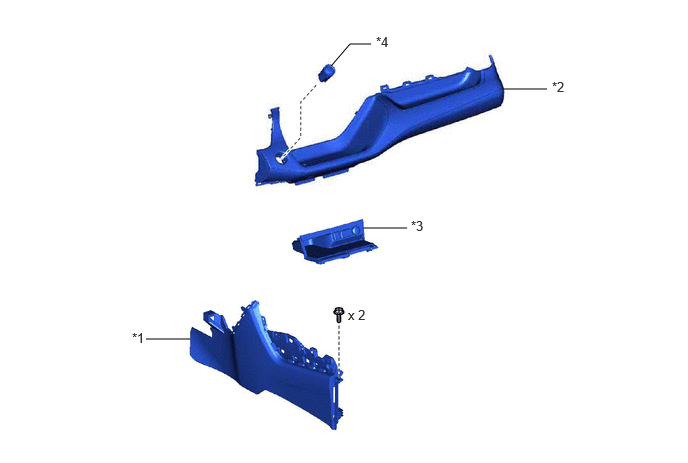

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | FRONT CONSOLE BOX INSERT | *2 | INSTRUMENT CLUSTER FINISH PANEL ORNAMENT |
| *3 | LOWER CENTER INSTRUMENT PANEL FINISH PANEL | *4 | ENGINE SWITCH |
