Parts Location [12/2019 - 10/2022]: Illustration

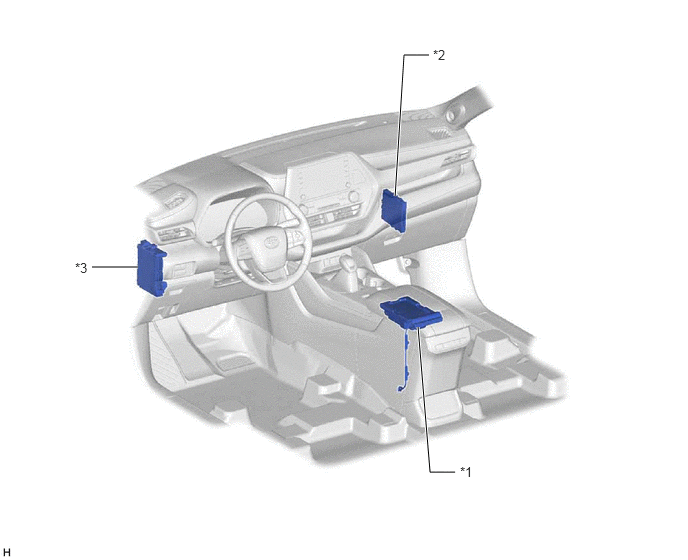

GTY884743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 MOBILE WIRELESS CHARGER CRADLE ASSEMBLY *2 CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
*3 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-DCC NO. 2 Fuse
- ECU-ACC Fuse
- PANEL Fuse		 - -
