Parts Location [11/2023 - ]: Illustration

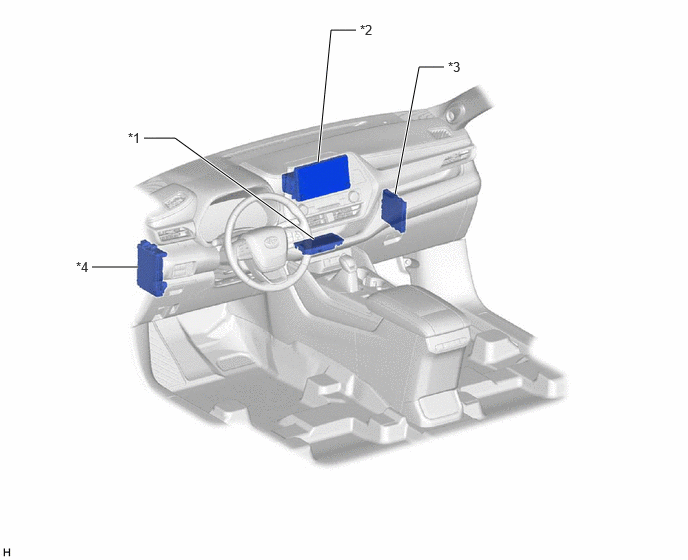

GTY1122026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 MOBILE WIRELESS CHARGER CRADLE ASSEMBLY *2 RADIO AND DISPLAY RECEIVER ASSEMBLY
*3 CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) *4 POWER DISTRIBUTION BOX ASSEMBLY
- ECU-DCC NO. 2 Fuse
- ECU-ACC Fuse
- PANEL Relay
