Operation Check [12/2019 - 10/2022]

  1. WIRELESS CHARGING SYSTEM OPERATION CHECK
    1. Turn the ignition switch to ON (READY, IG or ACC).

      HINT:

      If the ignition switch is turned off when the wireless charging system is on, the wireless charging system will automatically turn on the next time the ignition switch is turned to ON (READY, IG or ACC).

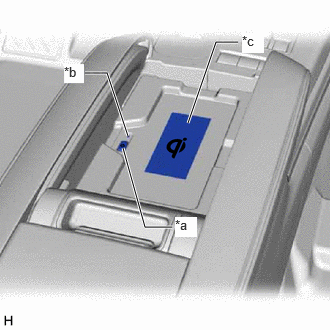

      GTY1120926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Mobile Wireless Charger Switch
      *b Indicator Light (Green/Amber)
      *c Charging Area
    2. Turn the wireless charging system on and check that the indicator light (green) illuminates.
    3. Place a rechargeable device on the charging area and check that the indicator light (amber) illuminates, indicating charging is in progress.

      HINT:

      Refer to Precaution for details about Qi-compatible rechargeable devices.

      Refer to PRECAUTION [12/2019 - 10/2022]

    4. Check that the indicator light (green) illuminates when charging is complete.

      HINT:

      Some mobile devices, cases or accessories may not cause the indicator (green) to illuminate when charging is complete even though they are Qi-compatible. Check the mobile device to confirm the charge status.

    5. Turn the wireless charging system off and check that the indicator light turns off.
