Wireless Charger Illumination Circuit [11/2023 - ]: Wiring Diagram

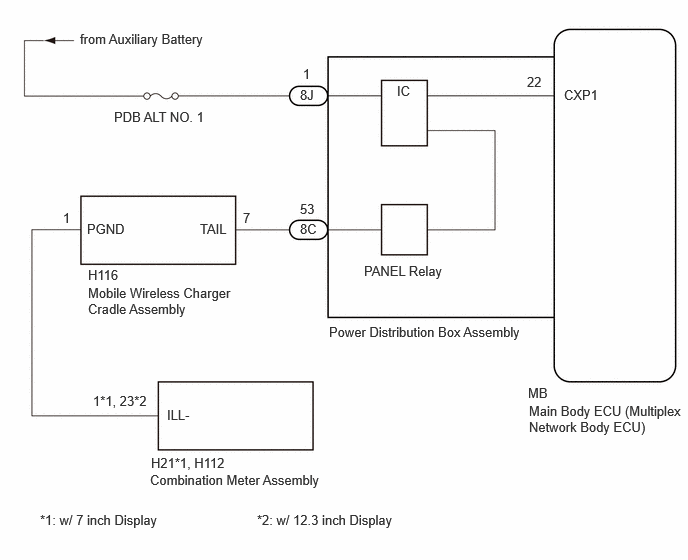

Fig 1: Wireless Charger Illumination Circuit [11/2023 - ]

GTY1178764

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
