Lighting System (Int) - Diagnostics & Circuit Tests (2 Of 2)
>>
Lighting System
>>
Ambient Illumination Light Circuit [11/2023 - ]
>>
Wiring Diagram

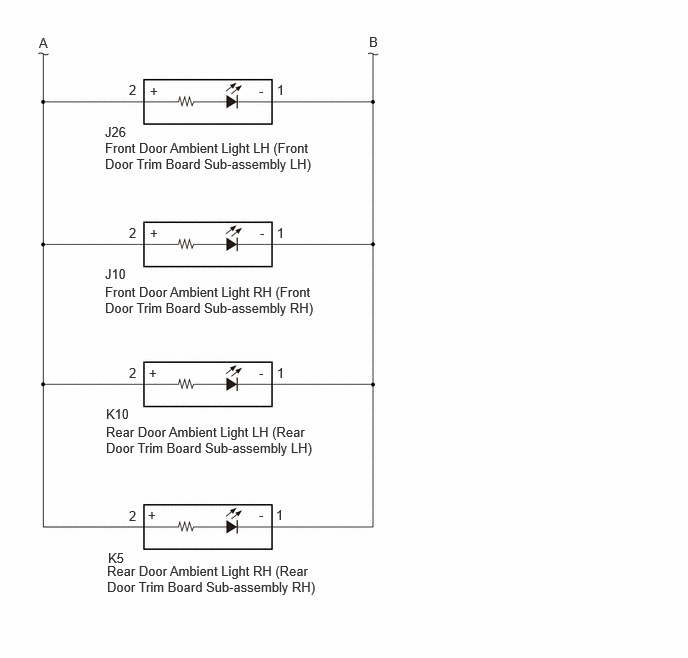

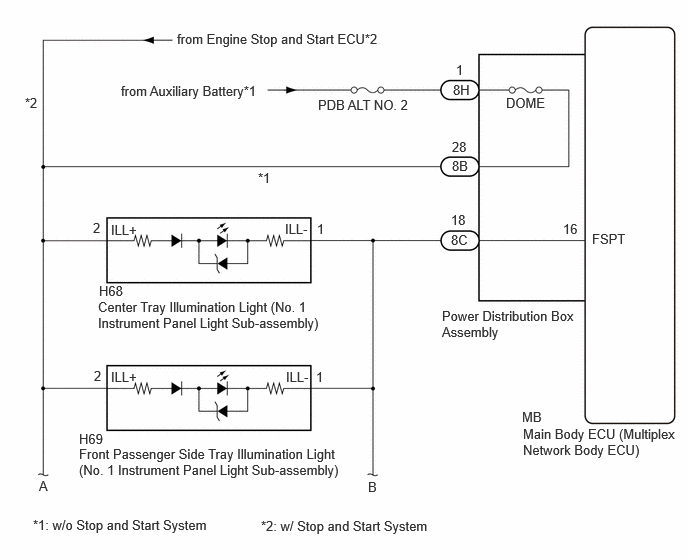

Ambient Illumination Light Circuit [11/2023 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
