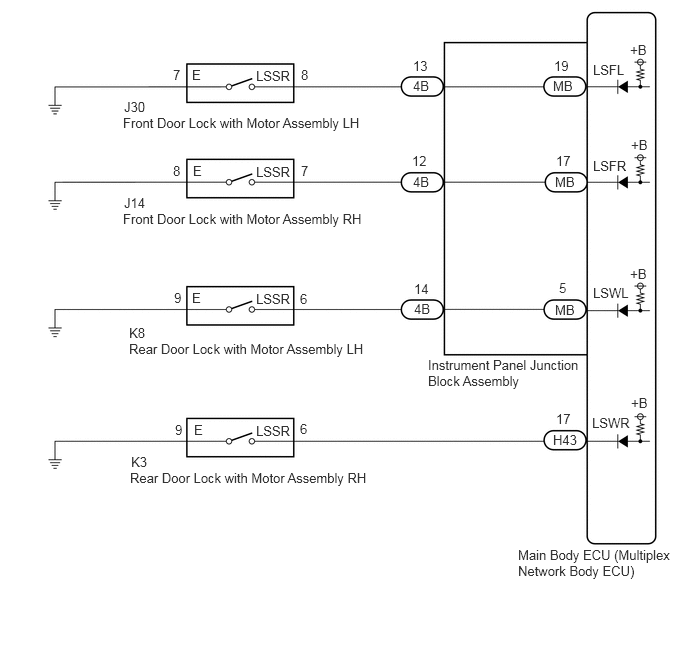

Door Unlock Detection Switch Circuit [12/2019 - 11/2023]: Wiring Diagram

GTY872595

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
