Headlight ECU RH Communication Stop Mode [11/2023 - ]: Procedure
- CHECK FOR OPEN IN CAN BUS LINES (HEADLIGHT ECU SUB-ASSEMBLY RH BRANCH LINE)
- Disconnect the cable from the negative (-) battery terminal.
- Disconnect the A16 headlight ECU sub-assembly RH connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

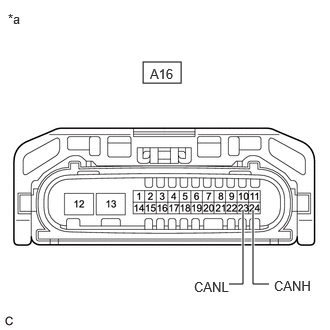

Tester Connection Condition Specified Condition A16-24 (CANH) - A16-23 (CANL) Cable disconnected from negative (-) battery terminal 54 to 69 Ω *a Front view of wire harness connector
(to Headlight ECU Sub-assembly RH)Result
Proceed to OK NG
Result:
NG
REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (HEADLIGHT ECU SUB-ASSEMBLY RH)
Result:
OK
See step 2
- CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

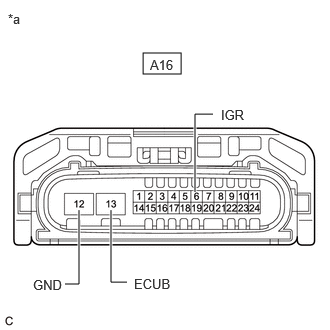

Tester Connection Condition Specified Condition A16-12 (GND) - Body ground Cable disconnected from negative (-) battery terminal Below 1 Ω *a Front view of wire harness connector
(to Headlight ECU Sub-assembly RH) - Reconnect the cable to the negative (-) battery terminal.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition A16-6 (IGR) - Body ground Ignition switch ON 11 to 14 V A16-13 (ECUB) - Body ground Ignition switch ON 11 to 14 V Result
Proceed to OK NG
Result:
OK
REPLACE HEADLIGHT ECU SUB-ASSEMBLY RH
Refer to REMOVAL [11/2023 - ]
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
