Headlight ECU LH Communication Stop Mode [11/2023 - ]: Procedure

1. Disconnect the cable from the negative (-) battery terminal.
2. Disconnect the A87 headlight ECU sub-assembly LH connector.
3. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

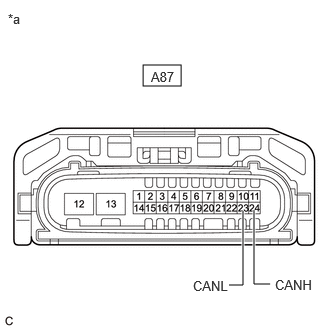

   *a	Front view of wire harness connector (to Headlight ECU Sub-assembly LH)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A87-24 (CANH) - A87-23 (CANL)	Cable disconnected from negative (-) battery terminal	54 to 69 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (HEADLIGHT ECU SUB-ASSEMBLY LH)

Result:

OK

See step  2

1. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

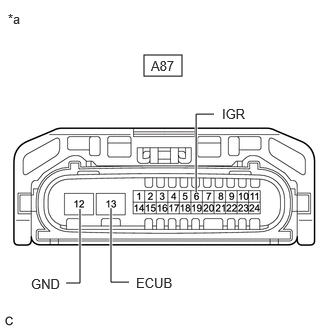

   *a	Front view of wire harness connector (to Headlight ECU Sub-assembly LH)

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A87-12 (GND) - Body ground	Cable disconnected from negative (-) battery terminal	Below 1 Ω

2. Reconnect the cable to the negative (-) battery terminal.
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   A87-6 (IGR) - Body ground	Ignition switch ON	11 to 14 V
   A87-13 (ECUB) - Body ground	Ignition switch ON	11 to 14 V

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE HEADLAGHT ECU SUB-ASSEMBLY LH

Refer to REMOVAL [11/2023 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
