CAN COMMUNICATION SYSTEM (for Gasoline Model)
>>
Engine Stop and Start ECU Communication Stop Mode [12/2019 - 11/2023]
>>

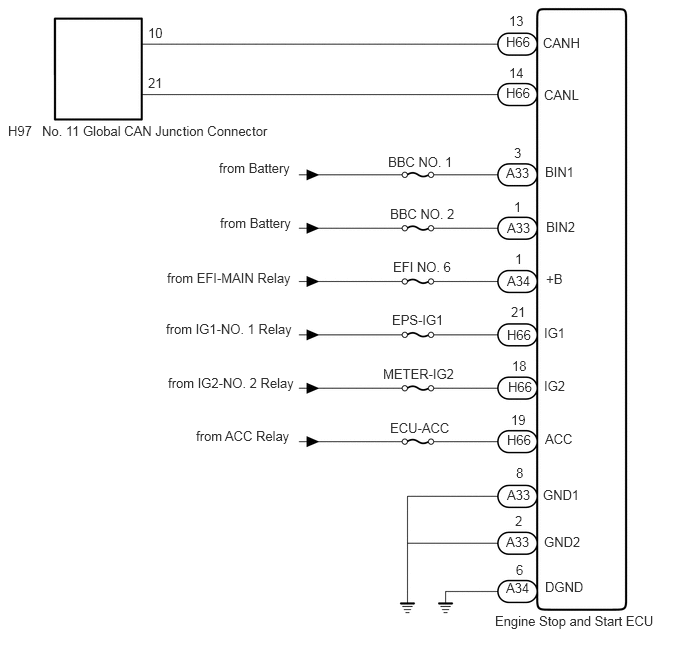

Wiring Diagram
Engine Stop and Start ECU Communication Stop Mode [12/2019 - 11/2023]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
