CAN COMMUNICATION SYSTEM (for Gasoline Model)
>>
Engine Stop and Start ECU Communication Stop Mode [11/2023 - ]
>>

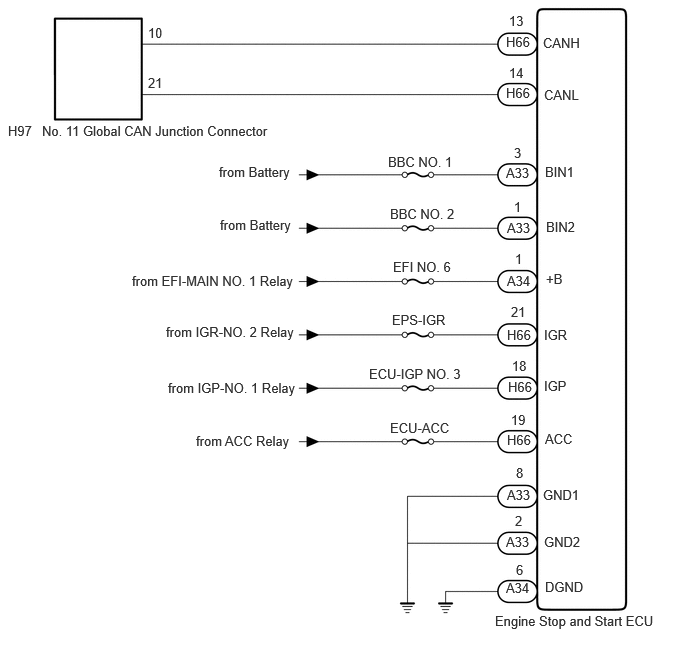

Wiring Diagram
Engine Stop and Start ECU Communication Stop Mode [11/2023 - ]: Wiring Diagram
