Front Fog Light Circuit [09/2020 - 11/2023]: Wiring Diagram

  1. Except Sport Package
    Fig 1: Except Sport Package [09/2020 - 11/2023]
    GTY838974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. For Sport Package

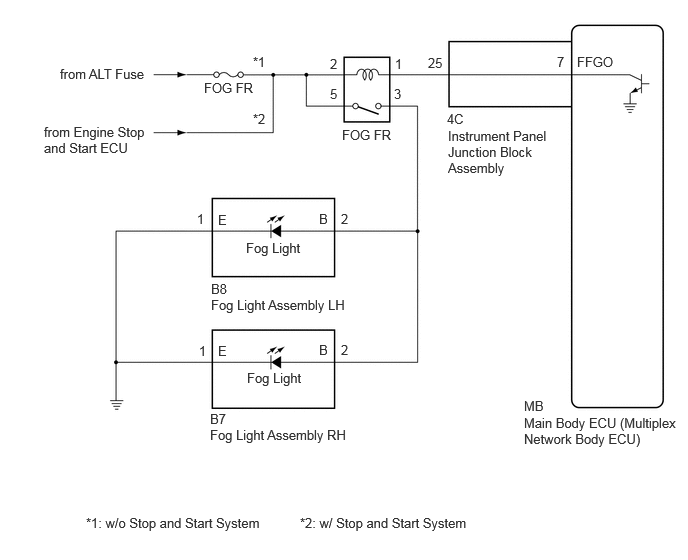

    Fig 2: For Sport Package [09/2020 - 11/2023]
    GTY990615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
