Parts Location [11/2023 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

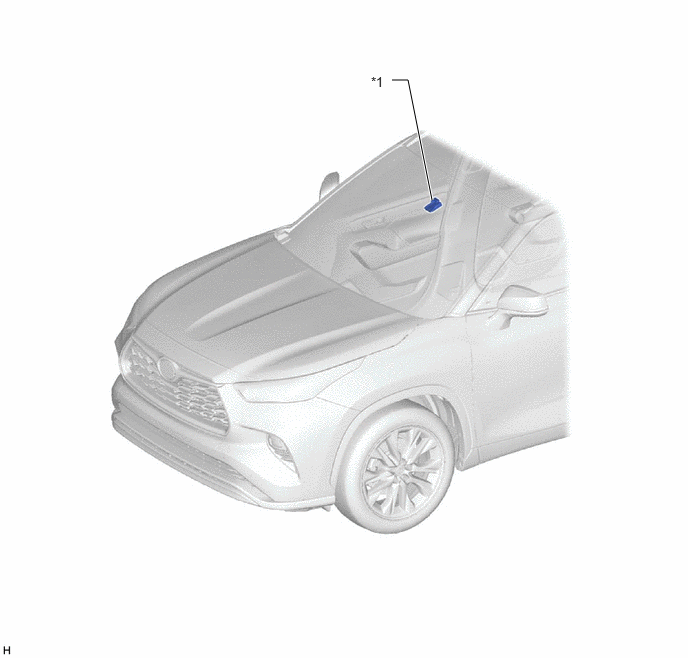

*1

FORWARD RECOGNITION CAMERA

-

-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

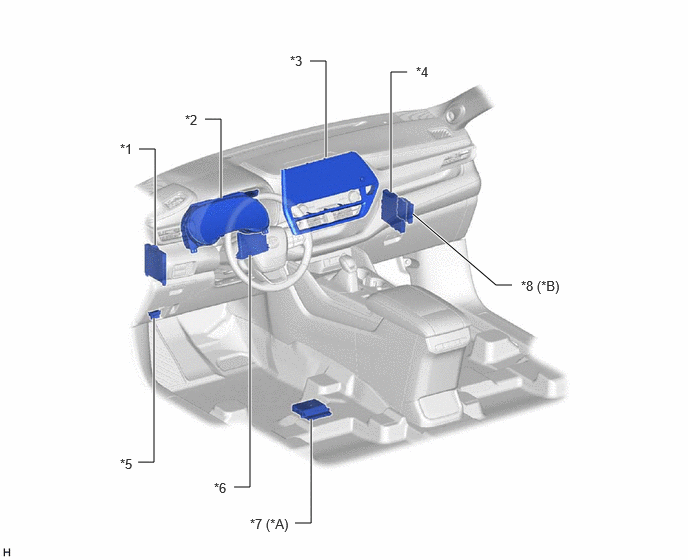

*A	w/ Seat Position Memory	*B	w/ Intuitive Parking Assist System
*1	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*2	COMBINATION METER ASSEMBLY
*3	RADIO AND DISPLAY RECEIVER ASSEMBLY	*4	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
*5	DLC3	*6	AIR CONDITIONING AMPLIFIER ASSEMBLY
*7	POSITION CONTROL ECU ASSEMBLY	*8	CLEARANCE WARNING ECU ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

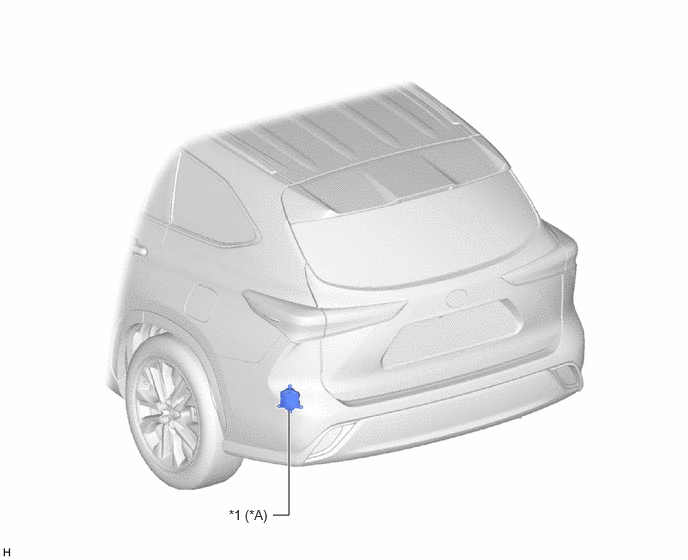

*A	w/ Blind Spot Monitor System	-	-
*1	BLIND SPOT MONITOR SENSOR LH (B)	-	-
