Components [12/2019 - ]

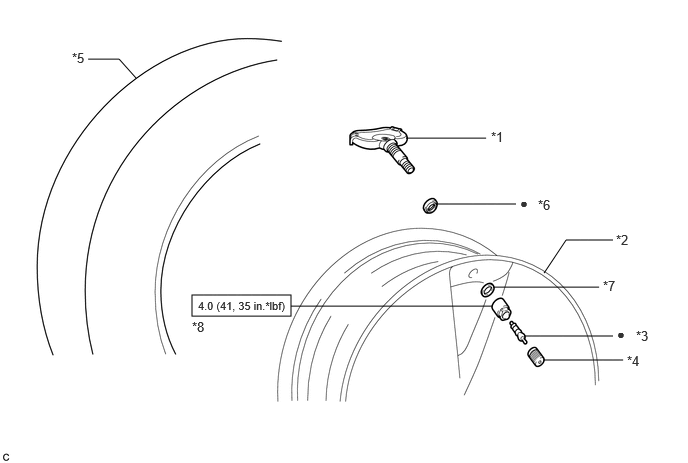

Fig 1: Tire Pressure Warning Valve Replacement Components With Torque Specifications
GTY855343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 TIRE PRESSURE WARNING VALVE AND TRANSMITTER *2 DISC WHEEL
*3 VALVE CORE *4 TIRE VALVE CAP
*5 TIRE *6 GROMMET
*7 WASHER *8 NUT
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
