Home >> Toyota >> 2021 >> Highlander LE, 4WD >> Repair and Diagnosis >> Suspension >> Wheels & Tire System >> Tire Pressure Warning System - Diagnostic Codes, Symptom Tests & Circuit Tests >> Tire Pressure Warning System >> DTC C2111: Transmitter ID1 Operation Stop; DTC C2112: Transmitter ID2 Operation Stop; DTC C2113: Transmitter ID3 Operation Stop; DTC C2114: Transmitter ID4 Operation Stop; DTC C2115: Transmitter ID 5 Operation Stop [12/2019 - 11/2023] >> Wiring Diagram

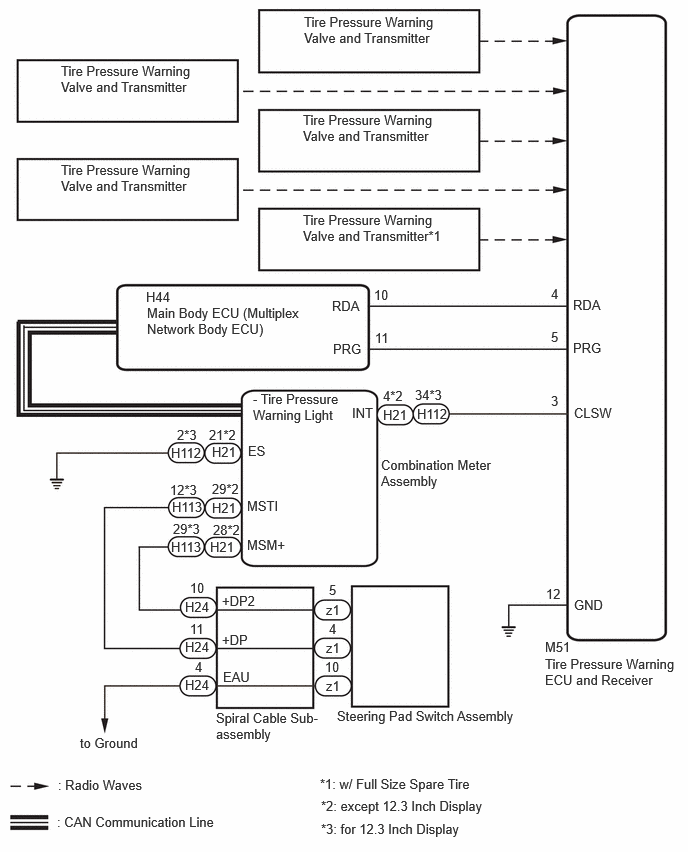

DTC C2111: Transmitter ID1 Operation Stop; DTC C2112: Transmitter ID2 Operation Stop; DTC C2113: Transmitter ID3 Operation Stop; DTC C2114: Transmitter ID4 Operation Stop; DTC C2115: Transmitter ID 5 Operation Stop [12/2019 - 11/2023]: Wiring Diagram

GTY1180466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
