Radio Receiver Assembly Communication Stop Mode [12/2019 - 10/2022]: Wiring Diagram

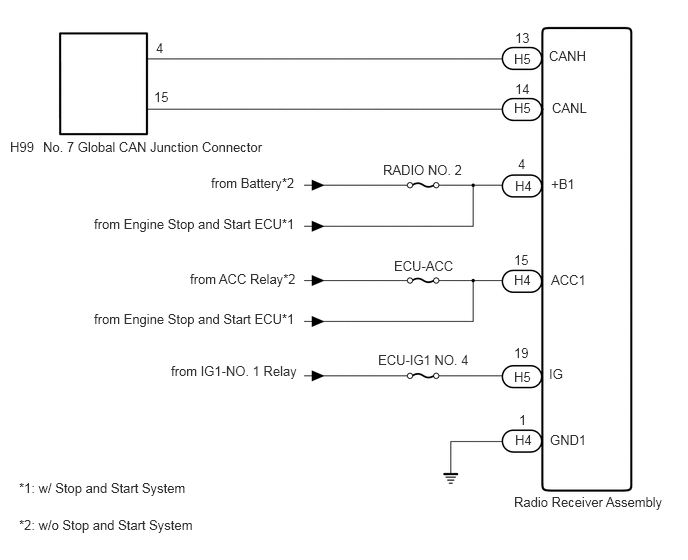

for 12.3 inch Display

GTY931006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

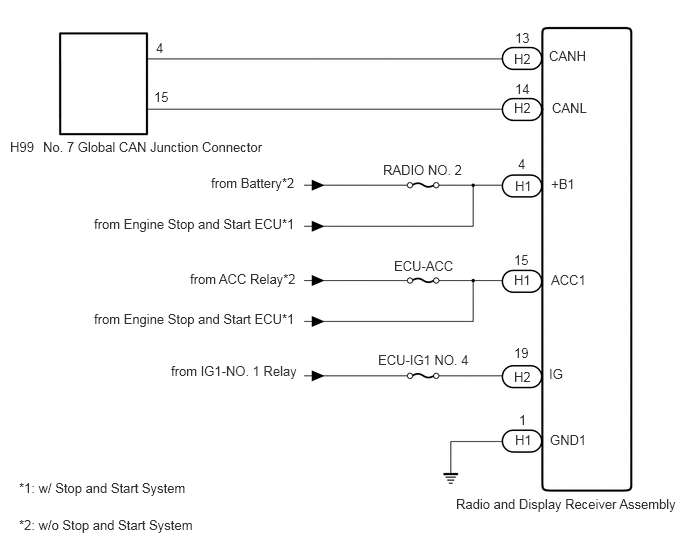

for 8 inch Display

GTY860067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
