Home >> Toyota >> 2021 >> Highlander LE, 4WD >> Repair and Diagnosis >> Suspension >> Wheels & Tire System >> Tire Pressure Warning System - Diagnostic Codes, Symptom Tests & Circuit Tests >> Tire Pressure Warning System >> DTC C2141-87: Tire Pressure Monitor Transmitter ID 1 Missing Message; DTC C2142-87: Tire Pressure Monitor Transmitter ID 2 Missing Message; DTC C2143-87: Tire Pressure Monitor Transmitter ID 3 Missing Message; DTC C2144-87: Tire Pressure Monitor Transmitter ID 4 Missing Message; DTC C2145-87: Tire Pressure Monitor Transmitter ID 5 Missing Message [11/2024 - ] >> Wiring Diagram

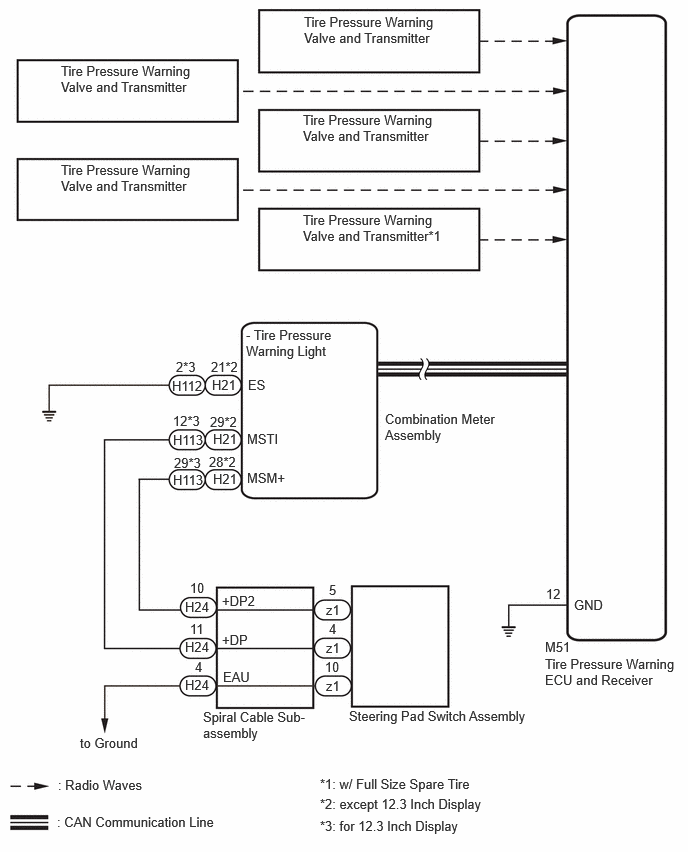

DTC C2141-87: Tire Pressure Monitor Transmitter ID 1 Missing Message; DTC C2142-87: Tire Pressure Monitor Transmitter ID 2 Missing Message; DTC C2143-87: Tire Pressure Monitor Transmitter ID 3 Missing Message; DTC C2144-87: Tire Pressure Monitor Transmitter ID 4 Missing Message; DTC C2145-87: Tire Pressure Monitor Transmitter ID 5 Missing Message [11/2024 - ]: Wiring Diagram

GTY1180462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
