Components [12/2019 - ]

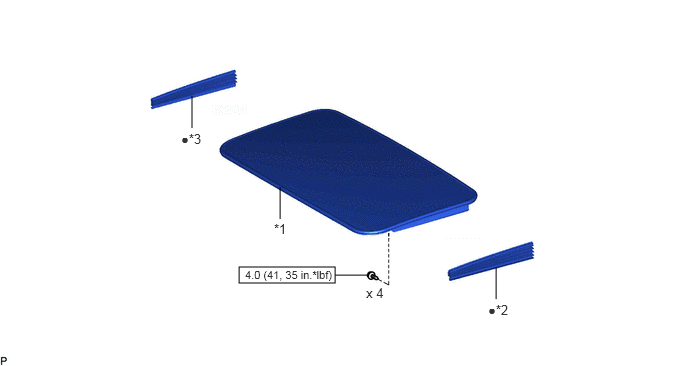

Fig 1: Sliding Roof Housing (For Moon Roof) Replacement Components With Torque Specifications (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | SLIDING ROOF GLASS SUB-ASSEMBLY | *2 | SLIDING ROOF SIDE GARNISH LH |
| *3 | SLIDING ROOF SIDE GARNISH RH | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |

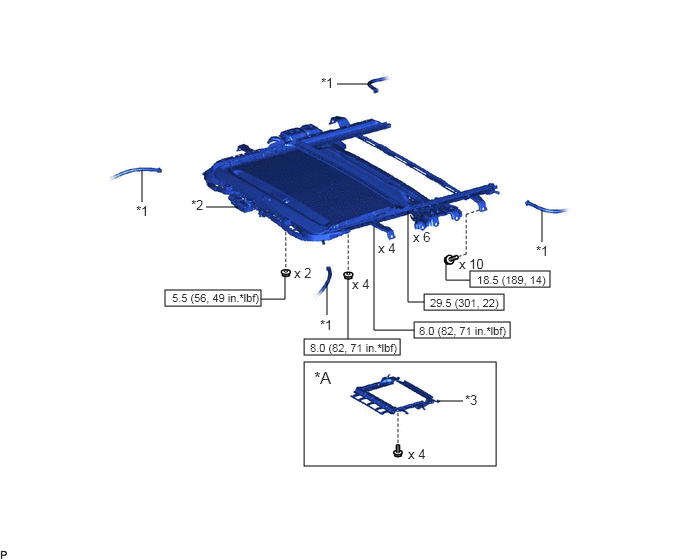

Fig 2: Sliding Roof Housing (For Moon Roof) Replacement Components With Torque Specifications (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Rear Seat Entertainment System | - | - |
| *1 | SLIDING ROOF DRAIN HOSE | *2 | SLIDING ROOF HOUSING ASSEMBLY |
| *3 | TELEVISION BRACKET | - | - |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |

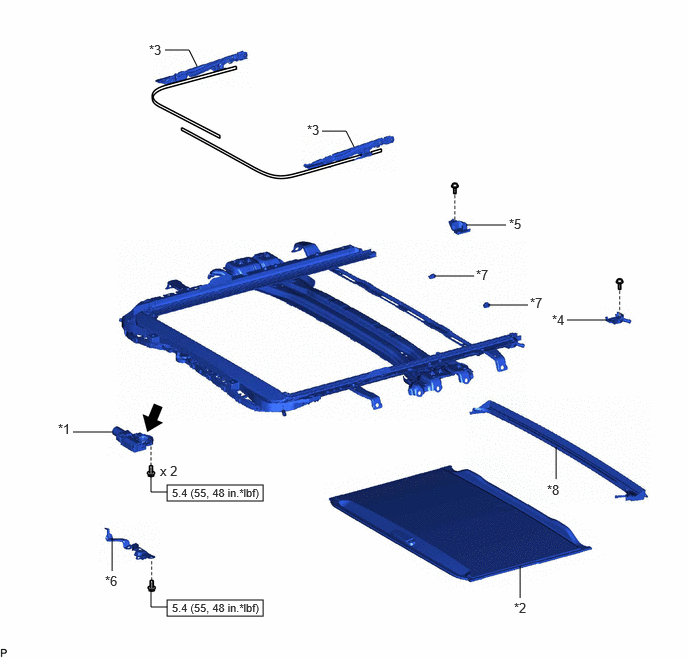

Fig 3: Sliding Roof Housing (For Moon Roof) Replacement Components With Torque Specifications (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | SLIDING ROOF DRIVE GEAR ASSEMBLY | *2 | SUNSHADE TRIM SUB-ASSEMBLY |
| *3 | SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY | *4 | SLIDING ROOF PIECE SUB-ASSEMBLY LH |
| *5 | SLIDING ROOF PIECE SUB-ASSEMBLY RH | *6 | MAP LIGHT BRACKET |
| *7 | REAR SLIDING ROOF SUNSHADE STOPPER | *8 | REAR ROOF DRIP CHANNEL |
|
N.m (kgf/cm, ft.lbf): Specified torque | - | - |
