Removal [11/2023 - ]: Procedure

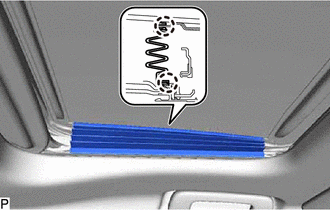

1. Disengage the 2 claws to remove the sliding roof side garnish LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure as for the LH side.

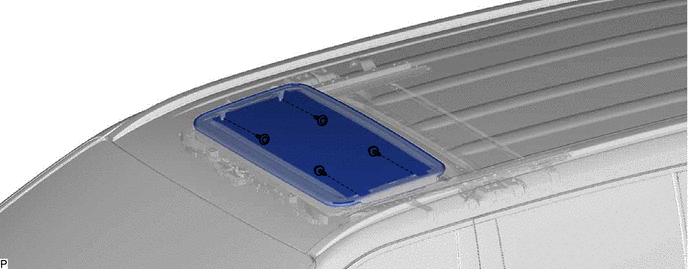

1. Using a T25 "TORX" socket wrench, remove the 4 screws and sliding roof glass sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   To prevent the sliding roof glass sub-assembly and sliding roof drive gear sub-assembly from being displaced, fully close the sliding roof glass sub-assembly (sliding roof drive cable sub-assembly), and then remove the sliding roof glass sub-assembly.

Refer to REMOVAL [11/2023 - ]

HINT:

Use the same procedure as for the LH side.

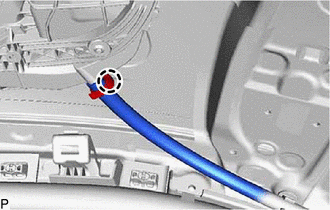

1. for Clamp Type:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Disengage the claw and disconnect the sliding roof drain hose.

      HINT:

      Use the same procedure for the other 3 sliding roof drain hoses.

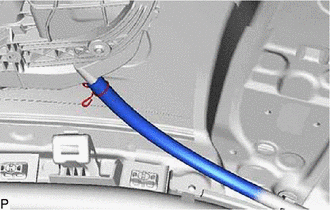

2. for Clip Type:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Expand the clip and disconnect the sliding roof drain hose.

      HINT:

      Use the same procedure for the other 3 sliding roof drain hoses.

1. Remove the 4 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

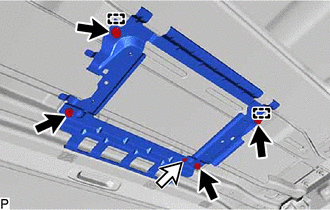

2. Disengage the clip and 2 guides to remove the television bracket.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

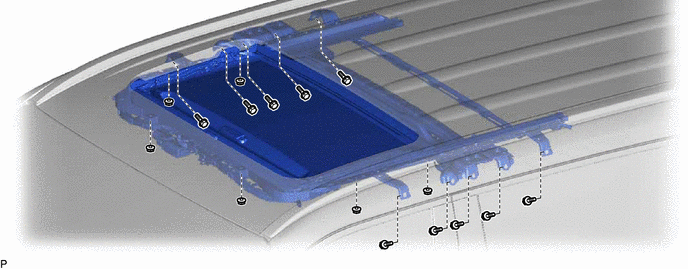

1. Remove the 10 bolts, 6 nuts and sliding roof housing assembly.
