Reassembly [12/2019 - ]: Procedure

  1. INSTALL SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY
    WARNING:

    Wear protective gloves. Sharp areas on the parts may injure your hands.

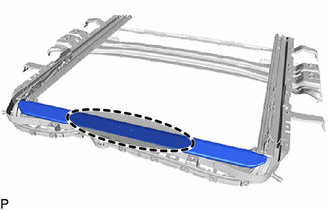

    1. GTY1250069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Hold Position
      1. Hold down the roof wind deflector panel sub-assembly.

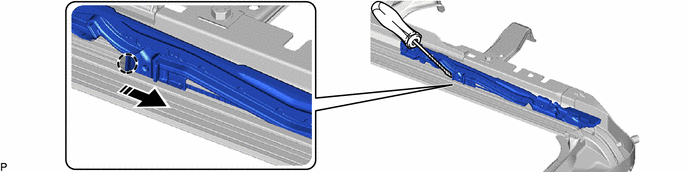

    2. Using a screwdriver with its tip wrapped with protective tape, slide the sliding roof drive cable sub-assembly as shown in the illustration to install it.
      GTY1250334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Push Position Install in this Direction

      HINT:

      Use the same procedure for the LH side and RH side.

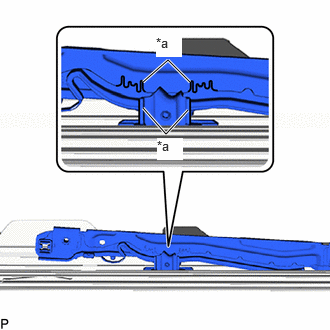

    3. Adjust Fully Closed Position:

      Slide the sliding roof drive cable sub-assembly in either direction and align the alignment marks as shown in the illustration.

      GTY1250438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Alignment Mark

      HINT:

      Use the same procedure for the LH side and RH side.

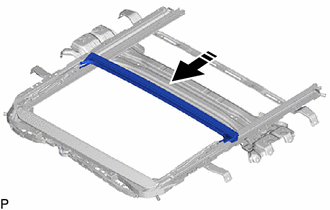

    4. Insert the rear roof drip channel into the sliding roof housing sub-assembly as shown in the illustration.
      GTY1249996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

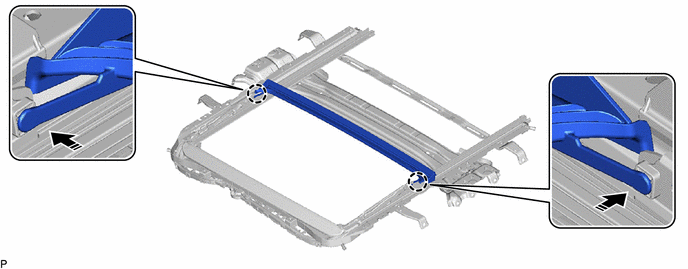

    5. Engage the 2 claws as shown in the illustration to install the rear roof drip channel.
      GTY1250290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction - -
  2. INSTALL SUNSHADE TRIM SUB-ASSEMBLY

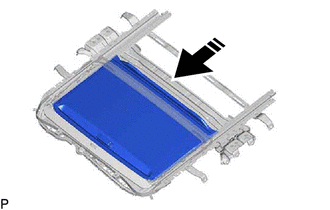

    1. Insert the sunshade trim sub-assembly into the sliding roof housing sub-assembly as shown in the illustration.
      GTY879328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

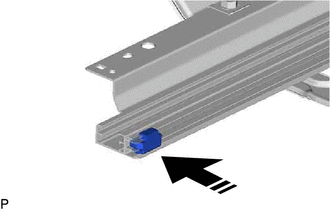

    2. Install the rear sliding roof sunshade stopper as shown in the illustration.

      HINT:

      Use the same procedure for the RH side.

      GTY876344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

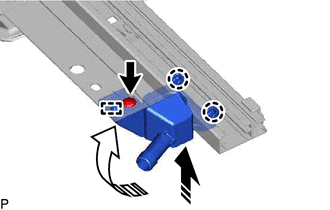

    3. Engage the 2 claws in the direction indicated by the arrow (1) shown in the illustration.
      GTY933380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
    4. Engage the guide in the direction indicated by the arrow (2) shown in the illustration.
    5. Install the sliding roof piece sub-assembly LH with the screw.

      HINT:

      Use the same procedure for the RH side.

  3. INSTALL SLIDING ROOF DRIVE GEAR ASSEMBLY
    1. Apply MP grease to the gear of the sliding roof drive gear assembly.
    2. Install the sliding roof drive gear assembly with the 2 bolts.
      GTY902458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

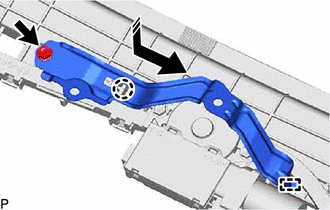

    3. Engage the guide and claw as shown in the illustration.
      GTY942604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    4. Install the map light bracket with the bolt.

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)
