Inspection [12/2019 - ]: Procedure

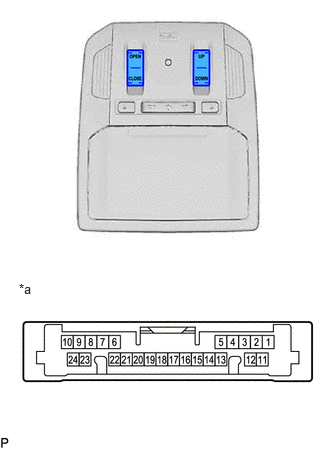

- INSPECT MAP LIGHT ASSEMBLY (for Sliding roof)
- Measure the resistance according to the value(s) in the table below.
*a Component without harness connected
(Map Light Assembly)Standard Resistance
Tester Connection Condition Specified Condition 17 - 11 UP switch pressed Below 1 Ω 17 - 11 UP switch not pressed 10 kΩ or higher 18 - 11 DOWN switch pressed Below 1 Ω 18 - 11 DOWN switch not pressed 10 kΩ or higher 20 - 11 OPEN switch pressed Below 1 Ω 20 - 11 OPEN switch not pressed 10 kΩ or higher 19 - 11 CLOSE switch pressed Below 1 Ω 19 - 11 CLOSE switch not pressed 10 kΩ or higher If the result is not as specified, replace the map light assembly.
- Measure the resistance according to the value(s) in the table below.

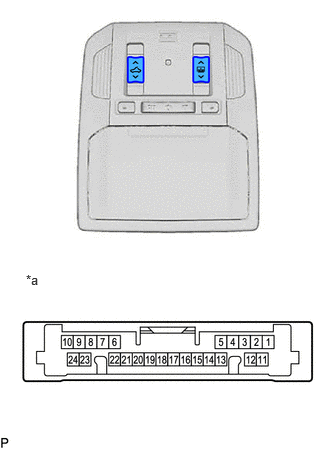

- INSPECT MAP LIGHT ASSEMBLY (for Panoramic Moon Roof)
- Measure the resistance according to the value(s) in the table below.
*a Component without harness connected
(Map Light Assembly)Standard Resistance
Tester Connection Condition Specified Condition 20 - 11 Sliding roof switch slid backward Below 1 Ω 20 - 11 Sliding roof switch not slid backward 10 kΩ or higher 19 - 11 Sliding roof switch slid forward Below 1 Ω 19 - 11 Sliding roof switch not slid forward 10 kΩ or higher 16 - 11 Sliding roof switch pressed Below 1 Ω 16 - 11 Sliding roof switch not pressed 10 kΩ or higher 17 - 11 Roof sunshade switch slid backward Below 1 Ω 17 - 11 Roof sunshade switch not slid backward 10 kΩ or higher 18 - 11 Roof sunshade switch slid forward Below 1 Ω 18 - 11 Roof sunshade switch not slid forward 10 kΩ or higher If the result is not as specified, replace the map light assembly.
- Measure the resistance according to the value(s) in the table below.
