Section 129 (Smart Key System (For Start, HV) - Symptom Tests (2 Of 2))
>>
SMART KEY SYSTEM (for Start Function, HV Model)
>>
Steering Lock does not Lock [12/2019 - 10/2021]
>>

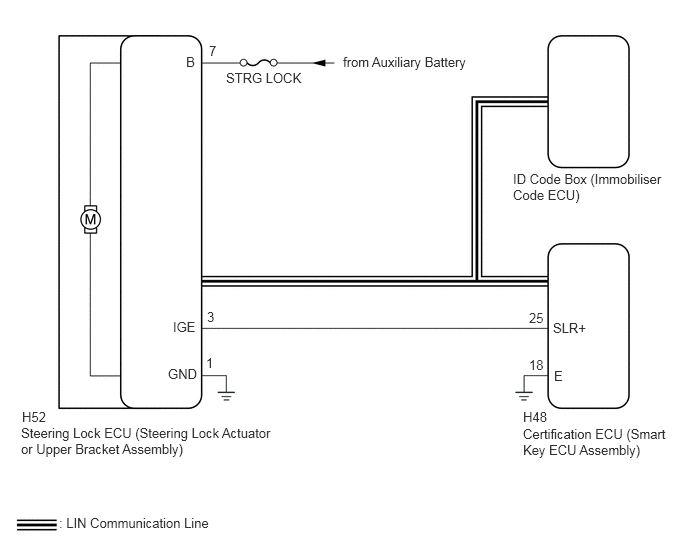

Wiring Diagram
Steering Lock does not Lock [12/2019 - 10/2021]: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
