CAN COMMUNICATION SYSTEM (for Gasoline Model)
>>
Driver Seat Control ECU Communication Stop Mode [11/2023 - ]
>>

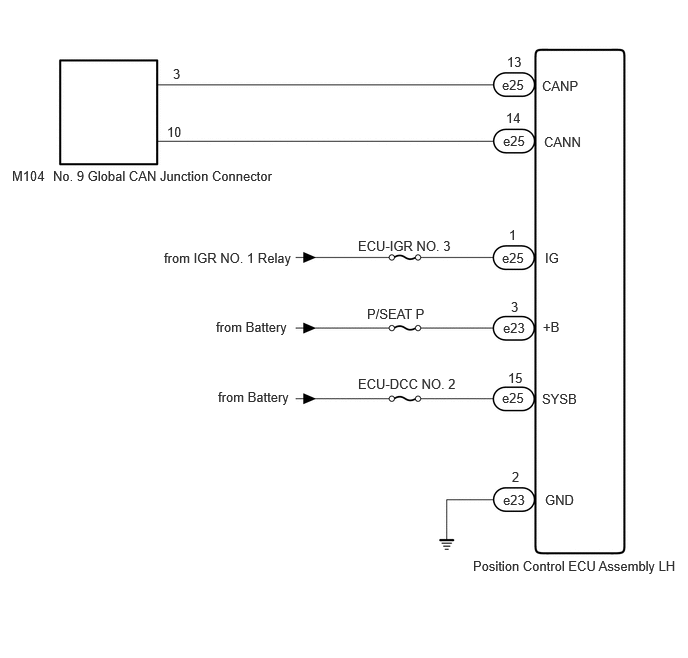

Wiring Diagram
Driver Seat Control ECU Communication Stop Mode [11/2023 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
