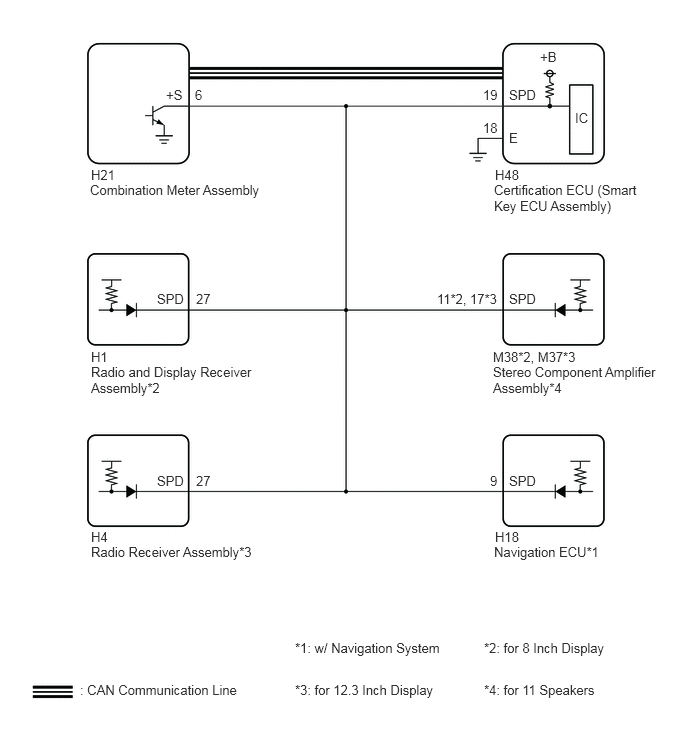

DTC B2282: Vehicle Speed Signal Malfunction; DTC B2283: Vehicle Speed Sensor Malfunction [12/2019 - 10/2021]: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.
GTY882979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
