DTC B2784: Antenna Coil Open / Short [12/2019 - 11/2023]: Procedure

1. Clear the DTCs.

   Body Electrical > Smart Key > Clear DTCs

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  2

1. Perform "DTC Output Confirmation Operation" procedure.
2. Check for DTCs.

   Body Electrical > Smart Key > Trouble Codes

   OK

   DTC B2784 is not output.

   Result

   Proceed to
   OK
   NG

Result:

OK

USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [12/2019 - ]

Result:

NG

See step  3

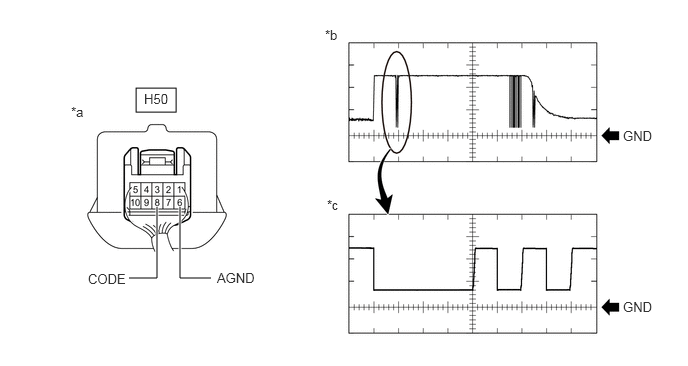

1. Using an oscilloscope, check the waveform.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component with harness connected (Power Switch)	*b	Waveform
   *c	Waveform (detail)	-	-

   Measurement Condition

   Tester Connection	Condition	Tool Setting	Specified Condition
   H50-8 (CODE) - H50-6 (AGND)	Ignition switch off, power switch pressed with electrical key transmitter sub-assembly held near power switch*	1 V/DIV., 20 ms./DIV.	Pulse generation (See waveform)
   		2 V/DIV., 100 μs./DIV.	Pulse generation (See waveform (detail))

   1. *: Remove the transmitter battery before performing this inspection.

   OK

   The waveform is similar to that shown in the illustration.

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [12/2019 - 11/2023]

Result:

NG

REPLACE POWER SWITCH. Refer to  REMOVAL [12/2019 - 10/2022]  , or refer to  REMOVAL [10/2022 - 11/2023]
