Components [12/2019 - 10/2022]

Fig 1: Canister Replacement Components With Torque Specifications [12/2019 - 10/2022] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT FLOOR COVER LH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

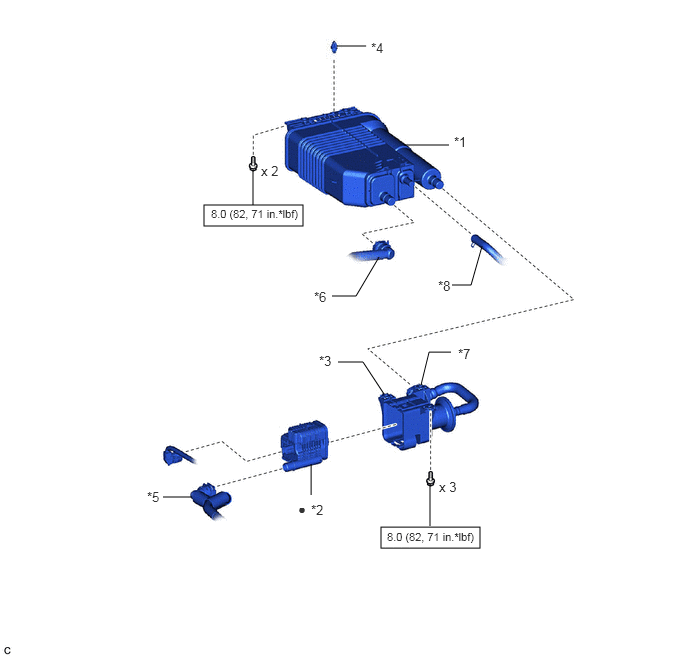

Fig 2: Canister Replacement Components With Torque Specifications [12/2019 - 10/2022] (2 Of 2)

Callout	Description	Callout	Description
*1	CANISTER (CHARCOAL CANISTER ASSEMBLY)	*2	LEAK DETECTION PUMP SUB-ASSEMBLY
*3	NO. 2 CHARCOAL CANISTER SUB-ASSEMBLY	*4	CHARCOAL CANISTER OUTLET GUIDE
*5	NO. 7 FUEL TANK BREATHER TUBE	*6	FUEL TANK EVAPORATION VENT TUBE SUB-ASSEMBLY
*7	FUEL TANK VENT HOSE SUB-ASSEMBLY	*8	FUEL EMISSION HOSE
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
