Installation [12/2019 - 10/2022]: Procedure

  1. INSTALL LEAK DETECTION PUMP SUB-ASSEMBLY

    HINT:

    Only perform this procedure when replacement of the leak detection pump sub-assembly is necessary.

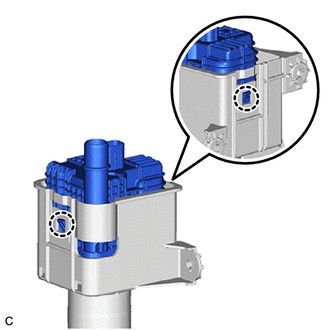

    1. Engage the 2 claws to install a new leak detection pump sub-assembly to the No. 2 charcoal canister sub-assembly.
      GTY886029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not allow foreign matter such as grease, oil or water to adhere to the O-ring.
      • Ensure that the claws are engaged properly.
  2. INSTALL NO. 2 CHARCOAL CANISTER SUB-ASSEMBLY
    1. Install the No. 2 charcoal canister sub-assembly to the vehicle body with the 3 bolts.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

    2. Connect the leak detection pump sub-assembly connector.
    3. Push in the No. 7 fuel tank breather tube to the pipe (leak detection pump sub-assembly) until the No. 7 fuel tank breather tube makes a "click" sound.
      NOTE:
      • Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe (leak detection pump sub-assembly) before performing this work.
      • After connecting the No. 7 fuel tank breather tube, check that the No. 7 fuel tank breather tube is securely connected by pulling on the tube connector.
  3. INSTALL CANISTER (CHARCOAL CANISTER ASSEMBLY)
    1. Install the charcoal canister outlet guide to the vehicle body.

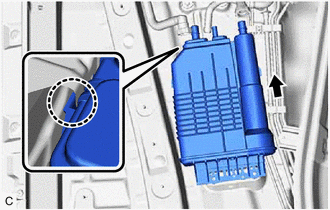

    2. Engage the claw to install the canister (charcoal canister assembly) to the vehicle body as shown in the illustration.
      GTY936701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the charcoal canister outlet guide to the canister (charcoal canister assembly).
    4. Install the 2 bolts.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

    5. Connect the fuel emission hose to the canister (charcoal canister assembly) and slide the clip to secure it.

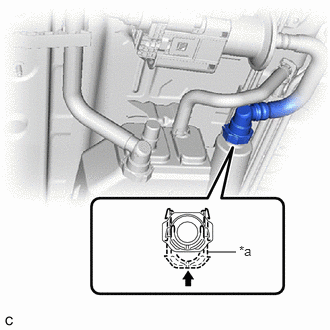

    6. Push the fuel tank vent hose sub-assembly onto the canister (charcoal canister assembly) and push in the retainer to engage the lock claws.
      NOTE:
      • Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe (canister (charcoal canister assembly)) before performing this work.
      • After connecting the fuel tank vent hose sub-assembly, check that the fuel tank vent hose sub-assembly is securely connected by pulling on the tube connector.
      GTY912559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      Push in

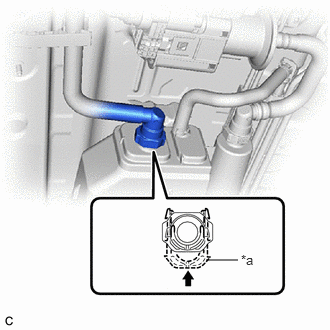

    7. Push the fuel tank evaporation vent tube sub-assembly onto the canister (charcoal canister assembly) and push in the retainer to engage the lock claws.
      NOTE:
      • Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe (canister (charcoal canister assembly)) before performing this work.
      • After connecting the fuel tank evaporation vent tube sub-assembly, check that the fuel tank evaporation vent tube sub-assembly is securely connected by pulling on the tube connector.
      GTY907687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      Push in
  4. INSTALL FRONT FLOOR COVER LH

    Refer to PROCEDURE - Step 13
